AD5770RBCBZ-RL7 - Analog Devices

Description: DAC 6-CH Segment 14-bit 49-Pin WLCSP T/R

Download AD5770RBCBZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

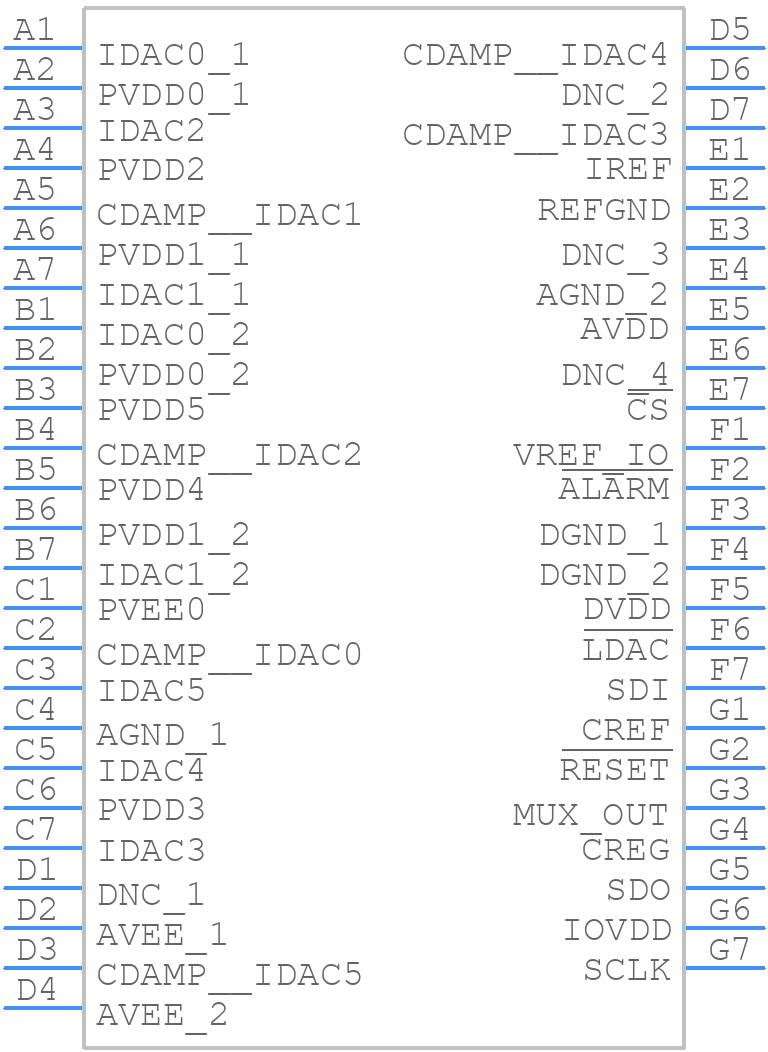

AD5770RBCBZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5770RBCBZ-RL7 - Analog Devices PCB footprint - BGA - BGA - 49-Ball Wafer Level Chip Scale Packaging [WLCSP]
click to zoom
3D Models
AD5770RBCBZ-RL7 - Analog Devices - 3D model - BGA - 49-Ball Wafer Level Chip Scale Packaging [WLCSP]
click to zoom

AD5770RBCBZ-RL7 Details

  • Manufacturer Part Number:

    AD5770RBCBZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-49

  • Pin Count:

    49

  • Manufacturer Package Code:

    CB-49-5

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PBGA-B49

  • JESD-609 Code:

    e1

  • Length:

    4.04 mm

  • Linearity Error-Max (EL):

    0.0397%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    49

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.66 mm

  • Settling Time-Nom (tstl):

    13 µs

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.04 mm

AD5770RBCBZ-RL7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply connections and decouple the power supplies with 10uF and 100nF capacitors.
  • Ensure that the thermocouple is properly connected and calibrated. Use a high-quality thermocouple wire and ensure that the thermocouple junction is not exposed to electromagnetic interference. Also, use the internal cold junction compensation (CJC) feature of the AD5770RBCBZ-RL7 to improve accuracy.
  • Perform a 2-point calibration using a high-accuracy temperature source, such as a dry-block calibrator. Calibrate the device at two temperatures, typically 0°C and 100°C, to ensure accurate temperature measurement across the entire range.
  • Use a shielded enclosure and keep the AD5770RBCBZ-RL7 away from high-frequency sources. Use a common-mode filter or a ferrite bead to filter out high-frequency noise. Also, ensure that the PCB layout is optimized for minimal noise and EMI.
  • The maximum cable length depends on the type of thermocouple wire used and the noise environment. As a general rule, keep the cable length as short as possible (less than 1 meter) to minimize noise and signal degradation.
