AD5781ARUZ-REEL7 - Analog Devices

Description: 18 Bit Digital to Analog Converter 1 20-TSSOP

Download AD5781ARUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

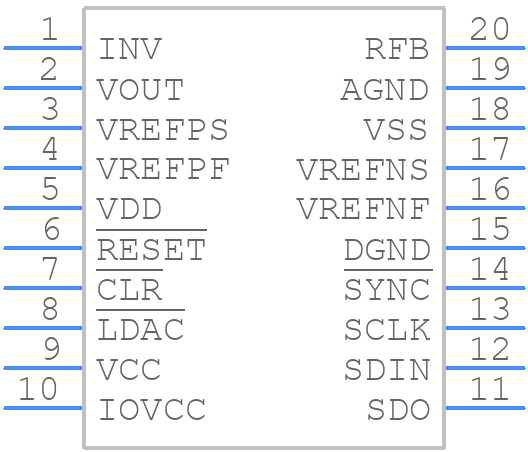

Symbol
AD5781ARUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5781ARUZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-20
click to zoom
3D Models
AD5781ARUZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RU-20
click to zoom

AD5781ARUZ-REEL7 Details

  • Manufacturer Part Number:

    AD5781ARUZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RU-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    28 V

  • Analog Output Voltage-Min:

    -23 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Bits:

    18

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    1 µs

  • Supply Current-Max:

    5.2 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5781ARUZ-REEL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the sensitive analog signals away from the digital signals. Also, use a low-ESR capacitor for the AVDD and DVDD pins, and keep the decoupling capacitors close to the pins.
  • The AD5781ARUZ-REEL7 has an internal calibration mechanism. However, for optimal performance, it's recommended to perform an external calibration using an external voltage reference and a precision resistor network. The calibration procedure involves applying a known voltage to the input and adjusting the internal DAC registers to achieve the desired output voltage.
  • The AD5781ARUZ-REEL7 has a maximum junction temperature of 150°C. To ensure thermal management, use a heat sink or a thermal pad, and ensure good airflow around the device. Also, avoid blocking the airflow around the device and ensure the PCB is designed to dissipate heat efficiently.
  • The AD5781ARUZ-REEL7 has a power-on reset circuit that ensures the device is in a known state after power-up. To handle power-on reset, ensure that the power supplies are sequenced correctly, with the analog supply (AVDD) powered up before the digital supply (DVDD). Also, ensure that the reset pin is properly connected to a pull-up resistor and a capacitor to ensure a clean reset signal.
  • To ensure electromagnetic compatibility, use a shielded enclosure, and ensure the PCB is designed with EMI and RFI in mind. Use a common-mode choke or a ferrite bead to filter the power supplies, and ensure the analog and digital grounds are separated. Also, use a low-pass filter or a pi-filter to reduce electromagnetic radiation.
