AD584JNZ - Analog Devices

Description: AD584JNZ, Programmable Voltage Reference 10V 0.3% 40 V max. 8-Pin PDIP

Download AD584JNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

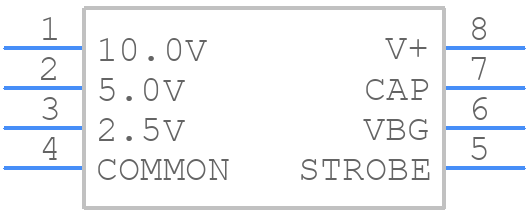

AD584JNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD584JNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP-(N-8)
click to zoom
3D Models
AD584JNZ - Analog Devices - 3D model - Dual-In-Line Packages - PDIP-(N-8)
click to zoom

AD584JNZ Details

  • Manufacturer Part Number:

    AD584JNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    N-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ADDITIONAL PROGRAMMABLE OUTPUTS OF 7.5V, 5V, 2.5V AVAILABLE

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.88 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Voltage-Max:

    10.03 V

  • Output Voltage-Min:

    9.97 V

  • Output Voltage-Nom:

    10 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max (Isup):

    1 mA

  • Supply Voltage-Max (Vsup):

    30 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    30 ppm/°C

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Trim/Adjustable Output:

    YES

  • Voltage Tolerance-Max:

    0.3%

  • Width:

    7.62 mm

AD584JNZ Frequently Asked Questions (FAQs)

  • The recommended input voltage range for the AD584JNZ is 4.5V to 30V. Operating the device outside of this range may affect its performance and accuracy.
  • To ensure the output voltage of the AD584JNZ remains stable over temperature, it is recommended to decouple the input pin with a 10uF capacitor and use a low-ESR capacitor (e.g., ceramic or film capacitor) for the output capacitor. Additionally, keeping the device away from high-power components and heat sources can help minimize thermal gradients.
  • Yes, the AD584JNZ can be used as a reference voltage for an ADC. Its low noise and high stability make it suitable for this application. However, it's essential to ensure the ADC's input range is compatible with the AD584JNZ's output voltage (2.048V or 4.096V) and to follow proper PCB layout and decoupling guidelines to minimize noise and interference.
  • The output impedance of the AD584JNZ can be calculated using the equation: Zout = (ΔVout / ΔIout) || Rload, where ΔVout is the change in output voltage, ΔIout is the change in output current, and Rload is the load resistance. The datasheet provides a graph of output impedance vs. frequency, which can be used to estimate the output impedance for a specific application.
  • For optimal performance, it is recommended to place the AD584JNZ close to the power supply and away from high-power components and heat sources. Use a ground plane under the device and keep the input and output traces short and direct. Decoupling capacitors should be placed as close as possible to the device pins. A 4-layer PCB with a dedicated ground plane is recommended to minimize noise and interference.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD584JNZ Overview

Use the download button to access the AD584JNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD584, or try a keyword search, such as Voltage References
