AD584KNZ - Analog Devices

Description: AD584KNZ, Programmable Adjustable Voltage Reference 2.5V 0.14% 40 V max. 8-Pin PDIP

Download AD584KNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

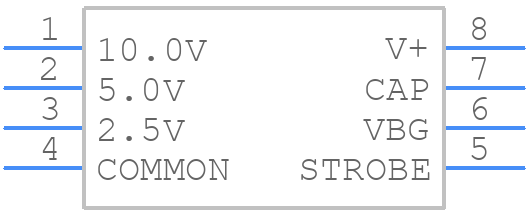

Symbol
AD584KNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD584KNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP-(N-8)
click to zoom
3D Models
AD584KNZ - Analog Devices - 3D model - Dual-In-Line Packages - PDIP-(N-8)
click to zoom

AD584KNZ Details

  • Manufacturer Part Number:

    AD584KNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    N-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ADDITIONAL PROGRAMMABLE OUTPUTS OF 7.5V, 5V, 2.5V AVAILABLE

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.88 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Voltage-Max:

    10.01 V

  • Output Voltage-Min:

    9.99 V

  • Output Voltage-Nom:

    10 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max (Isup):

    1 mA

  • Supply Voltage-Max (Vsup):

    30 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    15 ppm/°C

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Trim/Adjustable Output:

    YES

  • Voltage Tolerance-Max:

    0.14%

  • Width:

    7.62 mm

AD584KNZ Frequently Asked Questions (FAQs)

  • The recommended input voltage range for the AD584KNZ is 4.5V to 30V. Operating the device outside of this range may affect its performance and accuracy.
  • To ensure stability and accuracy over temperature, it's essential to decouple the input voltage with a 10uF capacitor and use a low-ESR capacitor (e.g., ceramic or film capacitor) for the output capacitor. Additionally, ensure good thermal coupling between the device and the heat sink, if used.
  • The output impedance of the AD584KNZ is typically around 10 ohms. This relatively low output impedance ensures that the device can drive moderate loads without significant voltage drops. However, if you need to drive high-current loads, you may need to add an external buffer amplifier to maintain accuracy and stability.
  • Yes, the AD584KNZ is suitable for use as a reference voltage for analog-to-digital converters (ADCs) or digital-to-analog converters (DACs). Its low noise and high stability make it an excellent choice for precision analog-to-digital or digital-to-analog conversions.
  • To minimize noise and interference, use a low-noise, well-regulated input voltage, and ensure good power supply decoupling. Additionally, use a ground plane and keep the device away from high-frequency sources and noise-generating components. Shielding the device and using a low-pass filter on the output can also help reduce noise and interference.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD584KNZ Overview

Use the download button to access the AD584KNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD584, or try a keyword search, such as Voltage References

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
