AD586BRZ - Analog Devices

Description: AD586BRZ, Precision Voltage Reference 5V 2.5mV Accuracy, 10mA 36 V max. 8-Pin SOIC

Download AD586BRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

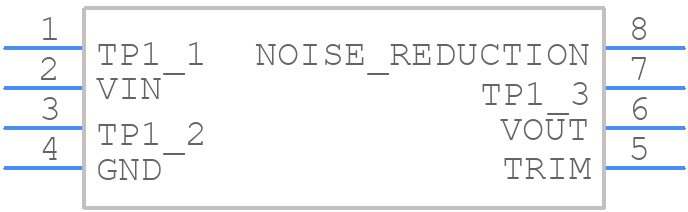

Symbol
AD586BRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD586BRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (R-8)
click to zoom
3D Models
AD586BRZ - Analog Devices - 3D model - Small Outline Packages - (R-8)
click to zoom

AD586BRZ Details

  • Manufacturer Part Number:

    AD586BRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    LEAD FREE, PLASTIC, MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.0025 V

  • Output Voltage-Min:

    4.9975 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    3 mA

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    10.8 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    5 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    YES

  • Voltage Tolerance-Max:

    0.05%

  • Width:

    3.9 mm

AD586BRZ Frequently Asked Questions (FAQs)

  • A good layout and grounding technique is crucial for the AD586BRZ. It is recommended to use a multi-layer PCB with a solid ground plane, and to keep the analog and digital grounds separate. The AD586BRZ should be placed close to the analog ground plane, and the input and output traces should be kept short and shielded.
  • To ensure accuracy over temperature, it is recommended to use a high-precision voltage reference, such as the AD586BRZ, and to calibrate the system at multiple temperatures. Additionally, the AD586BRZ has a built-in temperature sensor that can be used to compensate for temperature-related errors.
  • The recommended power-up sequence for the AD586BRZ is to first apply the analog supply voltage (VCC) and then the digital supply voltage (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent latch-up and ensures proper operation.
  • To minimize noise and interference in the AD586BRZ, it is recommended to use a low-noise power supply, to keep the input and output traces short and shielded, and to use a good quality decoupling capacitor. Additionally, the AD586BRZ has a built-in noise reduction feature that can be enabled to reduce noise and interference.
  • The recommended calibration procedure for the AD586BRZ involves applying a known input voltage and measuring the output voltage. The gain and offset errors can then be calculated and corrected for. It is recommended to calibrate the AD586BRZ at multiple temperatures and input voltages to ensure accuracy over the entire operating range.
