AD587JRZ-REEL7 - Analog Devices

Description: Voltage References IC, MONO 10V REFERENCE IC

Download AD587JRZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

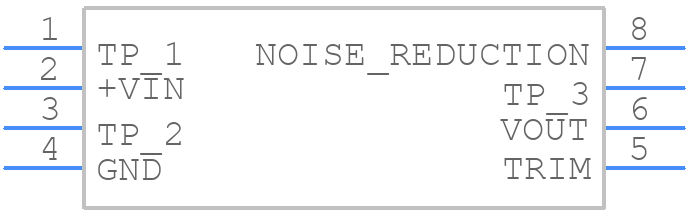

Symbol
AD587JRZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD587JRZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-8 (SOIC)
click to zoom
3D Models
AD587JRZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - R-8 (SOIC)
click to zoom

AD587JRZ-REEL7 Details

  • Manufacturer Part Number:

    AD587JRZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    LEAD FREE, MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Voltage-Max:

    10.01 V

  • Output Voltage-Min:

    9.99 V

  • Output Voltage-Nom:

    10 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    20 ppm/°C

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    YES

  • Voltage Tolerance-Max:

    0.1%

  • Width:

    3.9 mm

AD587JRZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD587JRZ involves keeping the input and output traces separate, using a solid ground plane, and minimizing the distance between the device and the decoupling capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure accuracy over temperature, it's essential to consider the temperature coefficient of the device, which is specified in the datasheet. Additionally, using a high-precision voltage reference, such as the AD587JRZ, and ensuring good thermal management on the PCB can help minimize temperature-related errors.
  • The recommended power-up sequence for the AD587JRZ is to apply the power supply voltage (VCC) before applying the input voltage (VIN). This ensures that the internal circuitry is properly initialized and reduces the risk of latch-up or other unexpected behavior.
  • To minimize the impact of EMI on the AD587JRZ, use a shielded enclosure, keep the device away from high-frequency sources, and use a low-pass filter or ferrite bead on the input and output lines. Additionally, ensure good PCB layout practices, such as keeping the signal traces short and using a solid ground plane.
  • The maximum allowable power dissipation for the AD587JRZ is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 500 mW at 25°C. However, this value can be derated at higher temperatures.
