- Part Number AD587KRZ
- Manufacturer Analog Devices
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SOIC_N2
- Released Date Apr 13, 2015
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD587KRZ Details
-
Manufacturer Part Number:
AD587KRZ
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
LEAD FREE, MS-012AA, SOIC-8
-
Pin Count:
8
-
Manufacturer Package Code:
R-8
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
AD587KRZ Frequently Asked Questions (FAQs)
-
A low-impedance, star-grounded layout is recommended, with the AD587KRZ placed close to the analog ground plane. Decouple the input and output pins with 10nF capacitors, and use a single-point ground connection to minimize noise and ensure accurate voltage reference.
-
Ensure the device is operated within its specified temperature range (-40°C to 125°C). Use a heat sink or thermal pad to dissipate heat, and consider using a thermally conductive adhesive to attach the device to a heat sink or PCB. Also, ensure good airflow and avoid thermal gradients.
-
The recommended input voltage range for the AD587KRZ is 4.5V to 30V. The output voltage is relatively insensitive to input voltage variations, but ensure the input voltage is within the specified range to maintain output voltage accuracy and stability.
-
Use a low-noise, regulated input voltage source, and consider adding a 10uF capacitor in parallel with a 10nF capacitor to filter out high-frequency noise. Additionally, use a ferrite bead or common-mode choke to filter out high-frequency noise on the input lines.
-
The typical output impedance of the AD587KRZ is around 0.2Ω. The output impedance affects the output voltage accuracy, especially when driving high-current loads. Ensure the output current is within the specified range (up to 10mA) to maintain output voltage accuracy.
Trust Checks
Community Provided
System Verified
Community Approved
AD587KRZ Overview

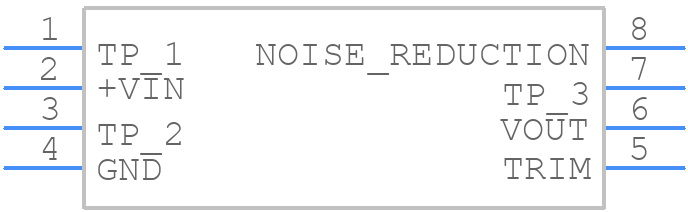

Use the download button to access the AD587KRZ schematic symbol, PCB footprint, and 3D model.
