AD5941BCPZ - Analog Devices

Description: High Precision, Impedance & Electrochemical Front End

Download AD5941BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

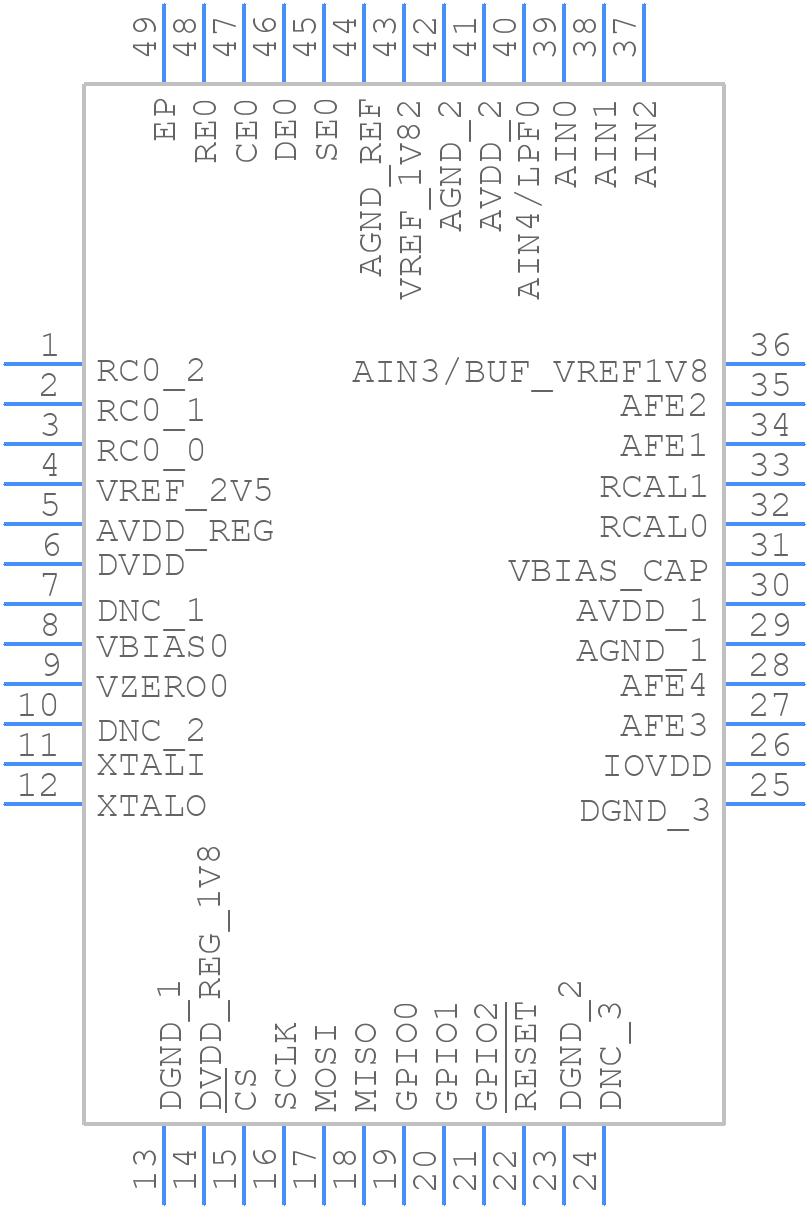

AD5941BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5941BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE_2024-1
click to zoom
3D Models
AD5941BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE_2024-1
click to zoom

AD5941BCPZ Details

  • Manufacturer Part Number:

    AD5941BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    CP-48-4

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-08-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    2.1 V

  • Analog Input Voltage-Min:

    0.2 V

  • Converter Type:

    DATA ACQUISITION DEVICE

  • JESD-30 Code:

    S-XQCC-N48

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.006103%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HWQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFIL

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1.6 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.74 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

AD5941BCPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5941BCPZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the performance of the AD5941BCPZ in a noisy environment, use a low-pass filter to remove high-frequency noise, use a shielded enclosure to reduce electromagnetic interference, and consider using a ferrite bead or a common-mode choke to filter out noise on the power supply lines.
  • The recommended power-up sequence for the AD5941BCPZ is to power up the analog supply (AVDD) first, followed by the digital supply (DVDD), and then the interface clock (CLK). This ensures that the analog circuitry is stable before the digital circuitry is enabled.
  • Calibration of the AD5941BCPZ involves adjusting the internal voltage references and gain settings to optimize the performance of the device. This can be done using the device's built-in calibration registers or through the use of external calibration signals.
  • The maximum data transfer rate of the AD5941BCPZ depends on the interface mode used. In SPI mode, the maximum data transfer rate is 20 Mbps, while in I2C mode, the maximum data transfer rate is 400 kHz.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5941BCPZ Overview

Use the download button to access the AD5941BCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD594, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
