Part Image

AD598JRZ - Analog Devices

Description: AD598JRZ, Differential Amplifier 20-Pin SOIC W

Download AD598JRZ Model

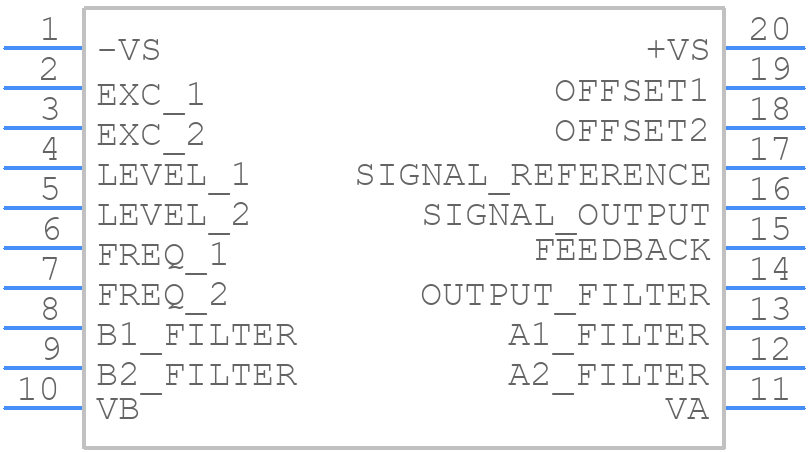

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AD598JRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 20-Lead Standard Small Outline Package [SOIC] Wide Body (R-20)-4
click to zoom
3D Models
AD598JRZ - Analog Devices  - 3D model - Small Outline Packages - 20-Lead Standard Small Outline Package [SOIC] Wide Body (R-20)-4
click to zoom

AD598JRZ Details

  • Manufacturer Part Number:

    AD598JRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, SOIC-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RW-20

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • Risk Rank:

    2.33

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    3.5 V

  • Converter Type:

    SIGNAL CONDITIONER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Signal/Output Frequency:

    20000 Hz

  • Supply Current-Max:

    16 mA

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    13 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD598JRZ Overview

Use the download button to access the AD598JRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD598, or try a keyword search, such as Position Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems that are used in appl

Parts related to AD598JRZ

Showing 0 results

AD598JRZ Alternates

Showing results

Image Part Number Model
Part Image AD598JR Analog Devices Inc

LVDT Signal Conditioner
