Part Image

AD5PS-1+ - Mini-Circuits

Description: RF Power Divider 1 MHz ~ 400 MHz Isolation (Min) 20dB, 9° Imbalance (Max) 8-SMD, Gull Wing , -40°C to +85°C

Download AD5PS-1+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

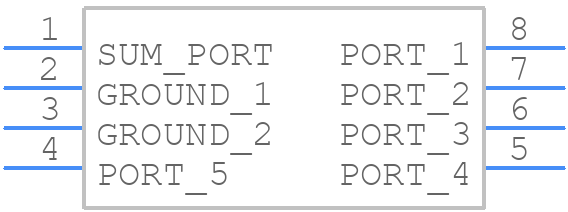

Symbol
AD5PS-1+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
AD5PS-1+ - Mini-Circuits PCB footprint - Other - Other - CJ725_2025
click to zoom
3D Models
AD5PS-1+ - Mini-Circuits - 3D model - Other - CJ725_2025
click to zoom

AD5PS-1+ Details

  • Manufacturer Part Number:

    AD5PS-1+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, CASE CJ725, 8 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.7

  • Additional Feature:

    ISOLATION-MIN (DB):18

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    26.99 dBm

  • Insertion Loss-Max:

    1.8 dB

  • Operating Frequency-Max:

    400 MHz

  • Operating Frequency-Min:

    1 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    COMBINER

  • VSWR-Max:

    1.45

AD5PS-1+ Frequently Asked Questions (FAQs)

  • A good grounding scheme is crucial for the AD5PS-1+. A solid ground plane and short, direct connections to the device's ground pins are recommended. Additionally, a low-inductance path to the power supply is essential. A 4-layer PCB with a dedicated ground plane and power plane is recommended.
  • The AD5PS-1+ requires a stable voltage supply and proper biasing. Ensure the device is operated within the recommended voltage range (5V ± 10%) and that the bias pins (VCC and VEE) are properly decoupled with capacitors (e.g., 100nF and 10uF).
  • The AD5PS-1+ can handle up to 1W of power. However, it's essential to ensure proper heat sinking and thermal management to prevent overheating, especially in high-power applications.
  • To minimize noise and interference, use a well-regulated power supply, decouple the device's power pins, and ensure a low-noise ground plane. Additionally, use shielding and filtering techniques to reduce electromagnetic interference (EMI).
  • The AD5PS-1+ is rated for operation from -40°C to +85°C. However, it's essential to ensure proper thermal management and heat sinking to prevent overheating, especially in high-power applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5PS-1+ Overview

Use the download button to access the AD5PS-1+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD5PS, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
