AD600JNZ - Analog Devices

Description: Dual variable gain amp,AD600JN DIP16 AD600JNZ, Dual Voltage Controlled Amplifier 30dB CMRR, 16-Pin PDIP

Download AD600JNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

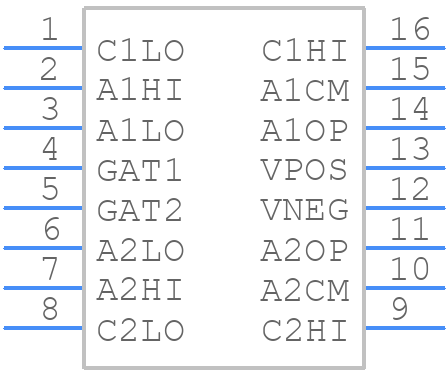

Symbol
AD600JNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD600JNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - AD605ANZaaa
click to zoom
3D Models
AD600JNZ - Analog Devices - 3D model - Dual-In-Line Packages - AD605ANZaaa
click to zoom

AD600JNZ Details

  • Manufacturer Part Number:

    AD600JNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    LEAD FREE, PLASTIC, MS-001AB, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    N-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    20.07 mm

  • Neg Supply Voltage-Max (Vsup):

    -5.25 V

  • Neg Supply Voltage-Min (Vsup):

    -4.75 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max (Isup):

    12.5 mA

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD600JNZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD600JNZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The AD600JNZ requires calibration to ensure accurate measurements. Calibration involves applying a known input signal and adjusting the internal calibration registers to achieve the desired output. The calibration process is typically done using the SPI interface and can be performed at power-up or during device operation.
  • The AD600JNZ can handle input voltages up to ±10.5 V, but it's recommended to limit the input voltage to ±5 V to ensure optimal performance and prevent damage to the device.
  • The AD600JNZ can be interfaced with a microcontroller using the SPI interface. The microcontroller can be used to configure the device, read data, and control the calibration process. A dedicated SPI interface is required to communicate with the AD600JNZ.
  • The power consumption of the AD600JNZ depends on the operating mode and the input voltage. In normal operation, the device consumes around 35 mA of current from a 5 V supply. In power-down mode, the current consumption is reduced to around 1 μA.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD600JNZ Overview

Use the download button to access the AD600JNZ schematic symbol, PCB footprint, and 3D model.
