AD600SQ/883B - Analog Devices

Description: Dual, Low Noise, Wideband Variable Gain Amplifier, 0 dB To +40 dB Gain

Download AD600SQ/883B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

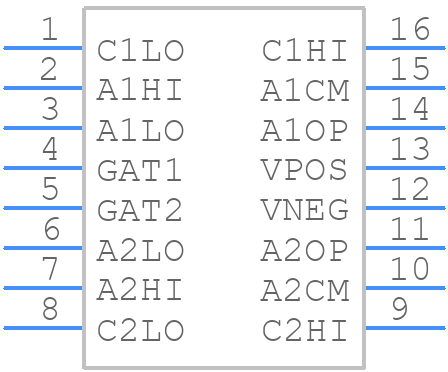

AD600SQ/883B - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD600SQ/883B - Analog Devices PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - Q-16_2023
click to zoom

AD600SQ/883B Details

  • Manufacturer Part Number:

    AD600SQ/883B

  • Source Url Status Check Date:

    2013-05-01 14:56:15.164

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    CERDIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    Q-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-GDIP-T16

  • JESD-609 Code:

    e0

  • Length:

    19.05 mm

  • Neg Supply Voltage-Max (Vsup):

    -5.25 V

  • Neg Supply Voltage-Min (Vsup):

    -4.75 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    CERAMIC, GLASS-SEALED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Screening Level:

    MIL-STD-883 Class B

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn63Pb37)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD600SQ/883B Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD600SQ/883B involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to use a low-ESR capacitor for the power supply decoupling.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the offset and gain trim pins accordingly. It's also important to use a high-precision voltage reference and to minimize noise and interference during the calibration process.
  • The AD600SQ/883B can handle input voltages up to ±20V without damage, but it's recommended to limit the input voltage to ±15V to ensure optimal performance and to prevent damage from overvoltage conditions.
  • To minimize noise and interference, use a low-noise power supply, keep the input traces short and shielded, and use a good quality analog ground plane. Additionally, consider using a ferrite bead or a common-mode choke to filter out high-frequency noise.
  • The typical settling time of the AD600SQ/883B is around 10-15 microseconds, but this can vary depending on the input signal frequency and amplitude, as well as the output load capacitance.
