AD605ANZ - Analog Devices

Description: Dual, Low Noise, Single-Supply Variable Gain Amplifier

Download AD605ANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

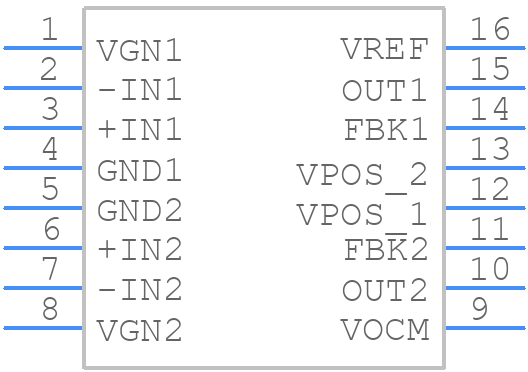

AD605ANZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD605ANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - AD605ANZaaa
click to zoom
3D Models
AD605ANZ - Analog Devices - 3D model - Dual-In-Line Packages - AD605ANZaaa
click to zoom

AD605ANZ Details

  • Manufacturer Part Number:

    AD605ANZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    LEAD FREE, PLASTIC, MS-001-AB, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    N-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    20.13 mm

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max (Isup):

    23 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD605ANZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD605ANZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to use a low-ESR capacitor for the power supply decoupling and to place it close to the device.
  • The gain and bandwidth of the AD605ANZ can be optimized by selecting the appropriate gain resistor (Rg) and capacitor (Cg) values. The datasheet provides a gain-bandwidth calculator to help with this. Additionally, the device's bandwidth can be further optimized by minimizing the parasitic capacitance and inductance in the input circuit.
  • The maximum input voltage that the AD605ANZ can handle is ±VCC + 0.5V, where VCC is the supply voltage. Exceeding this voltage can damage the device. It's recommended to use input protection circuitry, such as clamping diodes or resistors, to prevent overvoltage conditions.
  • The AD605ANZ is specified to operate from -40°C to +125°C. To ensure the device operates within this range, it's recommended to provide adequate heat sinking, avoid high-power dissipation, and use a thermally conductive material for the PCB. Additionally, the device's thermal shutdown feature can be used to prevent damage from overheating.
  • The recommended power-up sequence for the AD605ANZ is to apply the analog supply voltage (VCC) first, followed by the digital supply voltage (VDD). This ensures that the device's internal biasing and reference circuits are properly established before the digital logic is powered up.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD605ANZ Overview

Use the download button to access the AD605ANZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD605, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
