AD605BRZ-R7 - Analog Devices

Description: Dual, Low Noise, Single-Supply Variable Gain Amplifier

Download AD605BRZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

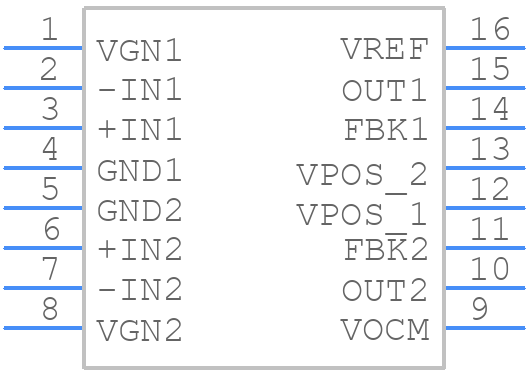

AD605BRZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD605BRZ-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD605BRZ-R7aaa
click to zoom
3D Models
AD605BRZ-R7 - Analog Devices - 3D model - Small Outline Packages - AD605BRZ-R7aaa
click to zoom

AD605BRZ-R7 Details

  • Manufacturer Part Number:

    AD605BRZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    MS-012-AC, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    46 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD605BRZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD605BRZ-R7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to use a low-ESR capacitor for the power supply decoupling and to place it as close as possible to the device.
  • The AD605BRZ-R7 has an internal calibration circuit that can be accessed through the CAL pin. To calibrate the device, tie the CAL pin to VCC or GND to select the calibration mode, and then apply a known input signal to the device. The device will then adjust its internal gain and offset to match the input signal.
  • The maximum input signal amplitude that the AD605BRZ-R7 can handle without saturating is ±10V peak-to-peak. Exceeding this limit may cause the device to saturate, resulting in inaccurate output signals.
  • Yes, the AD605BRZ-R7 can be used in a single-supply application, but it requires a voltage translator or a level shifter to shift the input signal to the correct voltage range. Additionally, the output signal will be referenced to the supply voltage, so the output voltage range will be limited to 0V to VCC.
  • To troubleshoot common issues with the AD605BRZ-R7, start by checking the power supply voltage and ensuring it's within the recommended range. Next, verify that the input signal is within the specified range and that the device is properly calibrated. If the issue persists, check for noise sources in the system, such as electromagnetic interference or digital noise, and take steps to mitigate them. Finally, consult the datasheet and application notes for specific troubleshooting guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD605BRZ-R7 Overview

Use the download button to access the AD605BRZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD605, or try a keyword search, such as Other Signal Circuits
