AD608ARZ - Analog Devices

Description: AD608ARZ, Up-Down Converter & Mixer Circuit 30MHz Gain=28 dB 2.7 → 5.5 V 16-Pin SOIC

Download AD608ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

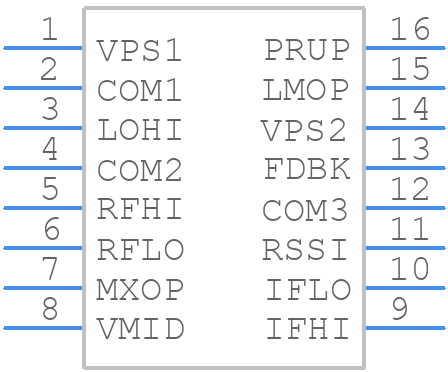

AD608ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD608ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead SOIC N
click to zoom
3D Models
AD608ARZ - Analog Devices - 3D model - Small Outline Packages - 16-Lead SOIC N
click to zoom

AD608ARZ Details

  • Manufacturer Part Number:

    AD608ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, PLASTIC, MS-012AC, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-609 Code:

    e3

  • Terminal Finish:

    Matte Tin (Sn)

AD608ARZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the analog power supply (VCC) before the digital power supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent any potential latch-up conditions.
  • To optimize the layout of the AD608ARZ, it is recommended to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signal traces separate. Additionally, it is recommended to use a low-ESR capacitor for the power supply decoupling and to place it as close as possible to the device.
  • The maximum allowed input voltage for the AD608ARZ is 5.5V. Exceeding this voltage may cause damage to the device.
  • The AD608ARZ has a maximum junction temperature of 150°C. To handle thermal considerations, it is recommended to provide adequate heat sinking, use a thermal interface material, and ensure good airflow around the device.
  • The recommended clock frequency for the AD608ARZ is up to 100 kHz. However, the device can operate at higher clock frequencies, but the performance may degrade.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD608ARZ Overview

Use the download button to access the AD608ARZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD608, or try a keyword search, such as Other Telecom ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
