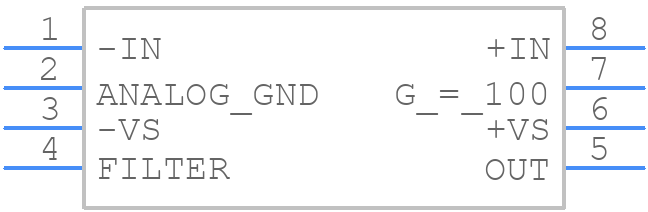

AD626AR-REEL7 - Analog Devices

AD626AR-REEL7 Details

• Manufacturer Part Number:

  AD626AR-REEL7

• Source Url Status Check Date:

  2013-05-01 14:56:15.438

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  SOIC-8

• Pin Count:

  8

• Manufacturer Package Code:

  R-8

• Reach Compliance Code:

  Not Compliant

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Amplifier Type:

  INSTRUMENTATION AMPLIFIER

• Bandwidth (3dB)-Nom:

  0.1 MHz

• Common-mode Reject Ratio-Min:

  55 dB

• Input Offset Voltage-Max:

  2500 µV

• JESD-30 Code:

  R-PDSO-G8

• JESD-609 Code:

  e0

• Length:

  4.9 mm

• Moisture Sensitivity Level:

  1

• Neg Supply Voltage Limit-Max:

  -18 V

• Neg Supply Voltage-Nom (Vsup):

  -5 V

• Non-linearity-Max:

  0.015%

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP8,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  TR, 7 INCH

• Peak Reflow Temperature (Cel):

  240

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.75 mm

• Slew Rate-Nom:

  0.22 V/us

• Supply Current-Max:

  2 mA

• Supply Voltage Limit-Max:

  18 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Lead (Sn85Pb15)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Voltage Gain-Max:

  100

• Voltage Gain-Min:

  10

• Voltage Gain-Nom:

  100

• Width:

  3.9 mm
