AD626ARZ - Analog Devices

Description: AD626ARZ, Differential Amplifier 5V 8-Pin SOIC N

Download AD626ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

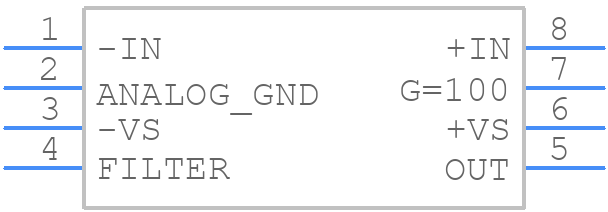

Symbol
AD626ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD626ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD626ARZ-1
click to zoom
3D Models
AD626ARZ - Analog Devices - 3D model - Small Outline Packages - AD626ARZ-1
click to zoom

AD626ARZ Details

  • Manufacturer Part Number:

    AD626ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Bandwidth (3dB)-Nom:

    0.1 MHz

  • Common-mode Reject Ratio-Min:

    55 dB

  • Input Offset Voltage-Max:

    2500 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Non-linearity-Max:

    0.015%

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    0.22 V/us

  • Supply Current-Max:

    2 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Voltage Gain-Max:

    100

  • Voltage Gain-Min:

    10

  • Voltage Gain-Nom:

    100

  • Width:

    3.9 mm

AD626ARZ Frequently Asked Questions (FAQs)

  • A good layout and grounding technique is crucial for the AD626ARZ. It is recommended to use a multi-layer PCB with a solid ground plane, and to keep the input and output traces separate. Also, it's essential to decouple the power supply pins with capacitors and to use a low-ESR capacitor for the output filter.
  • To optimize the performance of the AD626ARZ in a noisy environment, it's recommended to use shielding, filtering, and decoupling. Use a shielded enclosure, add filters to the input and output, and decouple the power supply pins with capacitors. Also, consider using a common-mode choke to reduce electromagnetic interference (EMI).
  • The maximum allowed input voltage for the AD626ARZ is ±15V. Exceeding this voltage can damage the device. It's essential to ensure that the input voltage is within the specified range to maintain the device's reliability and performance.
  • To ensure the stability of the AD626ARZ, it's essential to follow the recommended layout and grounding technique, use a stable power supply, and decouple the power supply pins with capacitors. Also, ensure that the input and output impedances are matched, and the output is properly terminated.
  • The recommended power-up sequence for the AD626ARZ is to apply the power supply voltage (VCC) before applying the input signal. This ensures that the device is properly biased and configured before the input signal is applied.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD626ARZ Overview

Use the download button to access the AD626ARZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD626, or try a keyword search, such as Instrumentation Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
