Please enter a minimum 3 letters or numbers
Technical Content
Part Image

AD626BNZ - Analog Devices

Description: Differential Amplifiers SINGLE SUPPLY DIFF IN AMP

Download AD626BNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

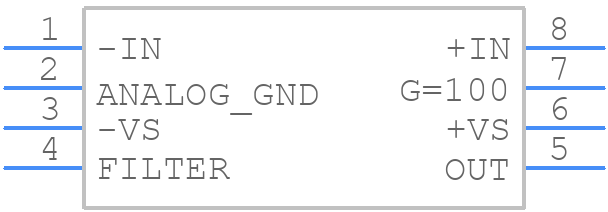

AD626BNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD626BNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - AD626BNZ
click to zoom
3D Models
AD626BNZ - Analog Devices - 3D model - Dual-In-Line Packages - AD626BNZ
click to zoom

AD626BNZ Details

  • Manufacturer Part Number:

    AD626BNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    MINI, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    N-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Bandwidth (3dB)-Nom:

    0.1 MHz

  • Common-mode Reject Ratio-Min:

    55 dB

  • Input Offset Voltage-Max:

    2500 µV

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.88 mm

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Non-linearity-Max:

    0.015%

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Slew Rate-Nom:

    0.22 V/us

  • Supply Current-Max:

    2 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Voltage Gain-Max:

    100

  • Voltage Gain-Min:

    10

  • Voltage Gain-Nom:

    100

  • Width:

    7.62 mm

AD626BNZ Frequently Asked Questions (FAQs)

  • A multi-layer PCB with a solid ground plane is recommended. Use a star-grounding technique, where all grounds are connected to a single point, and avoid running digital and analog traces parallel to each other.
  • The input impedance of the AD626BNZ is approximately 1 kΩ. To optimize the input impedance, use a voltage follower or a buffer amplifier with an output impedance that matches the input impedance of the AD626BNZ.
  • The maximum allowable input voltage swing is ±10 V. To protect the device from overvoltage, use a voltage limiter or a clamp circuit to limit the input voltage to within the specified range.
  • The AD626BNZ is specified to operate from -40°C to +85°C. Operating outside this range may result in reduced accuracy, increased noise, and decreased reliability. Ensure proper thermal management and heat sinking to maintain the device within its specified temperature range.
  • Use a low-ESR capacitor (e.g., 10 μF) in parallel with a high-frequency capacitor (e.g., 100 nF) to decouple the power supply. Add a ferrite bead or a pi-filter to filter out high-frequency noise.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD626BNZ Overview

Use the download button to access the AD626BNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD626, or try a keyword search, such as Instrumentation Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to AD626BNZ

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

AD626BNZ Alternates

Showing results

Image Part Number Model
Part Image AD626ANZ Analog Devices Inc

Instrumentation Amplifier, 1 Func, 2500uV Offset-Max, 0.1MHz Band Width, BIPolar, PDIP8
Part Image AD626AN Analog Devices Inc

Instrumentation Amplifier, 1 Func, 2500uV Offset-Max, 0.1MHz Band Width, BIPolar, PDIP8
Part Image AD626BN Analog Devices Inc

Instrumentation Amplifier, 1 Func, 2500uV Offset-Max, 0.1MHz Band Width, BIPolar, PDIP8
