Technical Content
Part Image

AD632AHZ - Analog Devices

Description: IC PREC MULTIPLIER MONO TO100-10

Download AD632AHZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

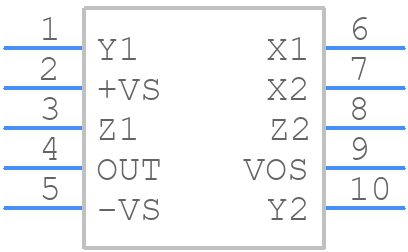

Symbol
AD632AHZ - Analog Devices - PCB symbol
click to zoom

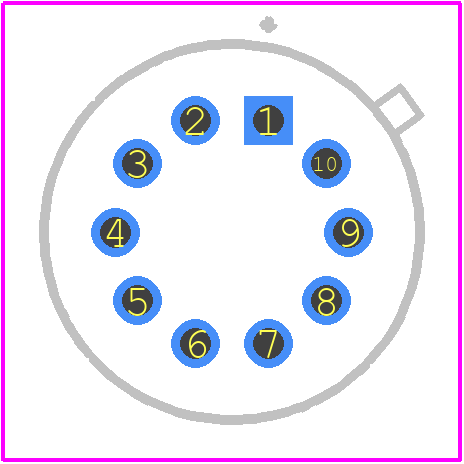

PCB Footprints
AD632AHZ - Analog Devices PCB footprint - Other - Other - 10-Pin Metal Header Package [TO-100] (H-10)-1
click to zoom

AD632AHZ Details

  • Manufacturer Part Number:

    AD632AHZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SMT

  • Package Description:

    ROHS COMPLIANT, HERMETIC SEALED, METAL CAN, TO-100, 10 PIN

  • Pin Count:

    10

  • Manufacturer Package Code:

    H-10-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog IC - Other Type:

    ANALOG MULTIPLIER OR DIVIDER

  • Bandwidth-Nom:

    1 MHz

  • JESD-30 Code:

    O-MBCY-W10

  • JESD-609 Code:

    e4

  • Neg Supply Voltage-Max (Vsup):

    -18 V

  • Neg Supply Voltage-Min (Vsup):

    -8 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Negative Input Voltage-Max:

    -10 V

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    METAL

  • Package Code:

    TO-100

  • Package Equivalence Code:

    CAN10,.23

  • Package Shape:

    ROUND

  • Package Style:

    CYLINDRICAL

  • Positive Input Voltage-Max:

    10 V

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    WIRE

  • Terminal Position:

    BOTTOM

AD632AHZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the positive supply voltage (VCC) first, followed by the negative supply voltage (VEE), and then the input signals. This sequence helps prevent latch-up and ensures proper operation.
  • To ensure stability in high-gain configurations, it's essential to use a compensation capacitor (Cc) between pins 1 and 8. The value of Cc depends on the gain and bandwidth requirements. A good starting point is a 10nF to 22nF capacitor.
  • The maximum allowable input voltage for the AD632AHZ is ±10V. Exceeding this limit can cause damage to the device or affect its performance.
  • Yes, the AD632AHZ can be used as a single-ended amplifier. However, this configuration may compromise the noise performance and common-mode rejection ratio (CMRR). It's recommended to use the device in a differential configuration for optimal performance.
  • To minimize noise, use a low-noise power supply, keep the input and output traces short and away from noise sources, and use a ground plane to reduce electromagnetic interference (EMI). Additionally, consider using a noise-reducing capacitor (e.g., 10nF to 100nF) between the power supply pins and ground.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD632AHZ Overview

Use the download button to access the AD632AHZ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AD632, or try a keyword search, such as Analog Computational Functions

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
