AD636KDZ - Analog Devices

Description: Analog Devices AD636KDZ, True RMS-DC Converter, 0 → 1 V, 14-Pin, SBDIP

Download AD636KDZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

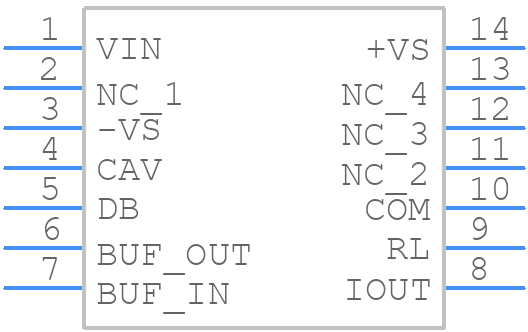

AD636KDZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD636KDZ - Analog Devices PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - D-14_2022
click to zoom

AD636KDZ Details

  • Manufacturer Part Number:

    AD636KDZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    ROHS COMPLIANT, SIDE BRAZED, CERAMIC, TO-116, DIP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    D-14

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Converter Type:

    RMS TO DC CONVERTER

  • JESD-30 Code:

    R-CDIP-T14

  • JESD-609 Code:

    e4

  • Length:

    17.78 mm

  • Negative Supply Voltage-Max:

    -16.5 V

  • Negative Supply Voltage-Min:

    -2.5 V

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Frequency-Max:

    0.1 MHz

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Positive Input Voltage-Max:

    0.2 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Max:

    16.5 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    NO

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Total Error-Max:

    0.5%

  • Width:

    7.62 mm

AD636KDZ Frequently Asked Questions (FAQs)

  • The AD636KDZ is a sensitive device and requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the analog-to-digital converter (ADC) and to use a ground plane to reduce noise. Additionally, the input and output traces should be kept short and away from digital signals to minimize coupling.
  • The AD636KDZ has a output voltage swing of up to 10V, which may exceed the input range of some ADCs. To handle this, you can use an external voltage divider or an op-amp to attenuate the output signal to within the ADC's input range. Alternatively, you can use an ADC with a wider input range or use a different amplifier with a lower output voltage swing.
  • The AD636KDZ is a precision amplifier and its accuracy and stability can be affected by temperature. The device has a specified temperature range of -40°C to 125°C, and its accuracy and stability may degrade outside of this range. It is recommended to use the device within its specified temperature range and to consider temperature compensation or calibration if high accuracy is required over a wide temperature range.
  • The AD636KDZ requires a dual power supply of ±15V to operate. It is recommended to use a high-quality power supply with low noise and ripple to ensure optimal performance. Additionally, the device requires a bias voltage of 2.5V to 5V, which can be generated using a voltage reference or a resistive divider. It is also important to ensure that the power supply and bias voltage are stable and well-regulated to minimize noise and ensure optimal performance.
  • The AD636KDZ has a recommended input impedance of 1kΩ to 10kΩ to ensure optimal performance. A higher input impedance can result in reduced bandwidth and increased noise, while a lower input impedance can result in increased power consumption and reduced accuracy. It is recommended to use an input impedance that is within the specified range to ensure optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD636KDZ Overview

Use the download button to access the AD636KDZ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AD636, or try a keyword search, such as Analog Special Function Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
