AD660BNZ - Analog Devices

Description: Analog Devices AD660BNZ, 16 bit Parallel DAC, 167ksps, 24-Pin PDIP

Download AD660BNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

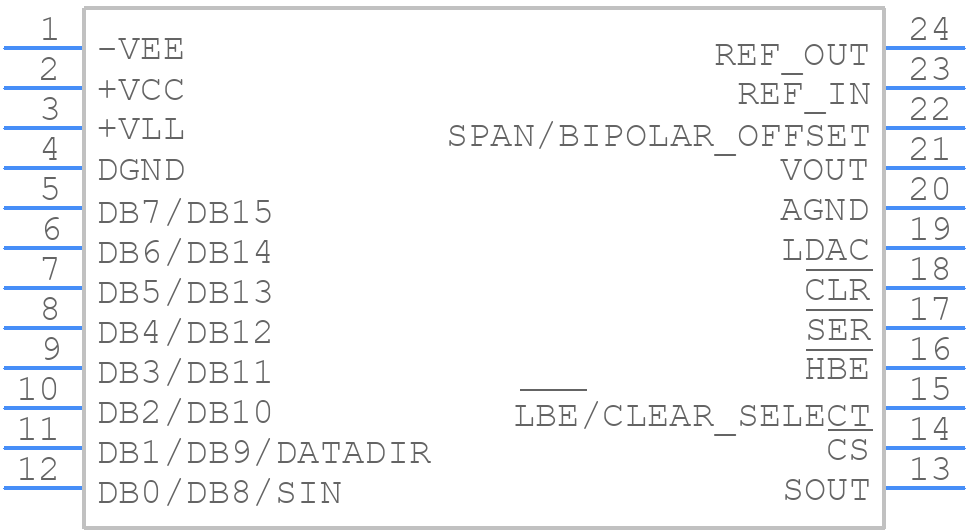

Symbol
AD660BNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD660BNZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-24-1
click to zoom
3D Models
AD660BNZ - Analog Devices - 3D model - Dual-In-Line Packages - N-24-1
click to zoom

AD660BNZ Details

  • Manufacturer Part Number:

    AD660BNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    N-24-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    10 V

  • Analog Output Voltage-Min:

    -10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL, PARALLEL, 8 BITS

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Length:

    30.48 mm

  • Linearity Error-Max (EL):

    0.0031%

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Settling Time-Max:

    13 µs

  • Settling Time-Nom (tstl):

    2.5 µs

  • Supply Current-Max:

    18 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD660BNZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD660BNZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. It's also recommended to use a low-ESR capacitor for the power supply decoupling.
  • To ensure accurate temperature measurement, it's essential to calibrate the AD660BNZ using a known temperature reference point. Additionally, the thermistor should be properly connected, and the device should be operated within its specified temperature range.
  • The maximum allowable voltage on the input pins of the AD660BNZ is 5.5V. Exceeding this voltage can damage the device. It's recommended to use voltage limiting resistors or clamping diodes to protect the inputs.
  • Yes, the AD660BNZ has built-in noise reduction features such as a 50 Hz/60 Hz rejection filter and a high-pass filter. However, it's still recommended to use proper shielding, grounding, and filtering techniques to minimize the effects of noise on the device.
  • The AD660BNZ can be interfaced with a microcontroller using a serial interface such as SPI or I2C. The device requires a clock signal, chip select signal, and data lines to communicate with the microcontroller. The specific interface details can be found in the datasheet.
