AD6654BBCZ footprint, schematic symbol and 3D model by Analog Devices

Symbol

click to zoom

PCB Footprints

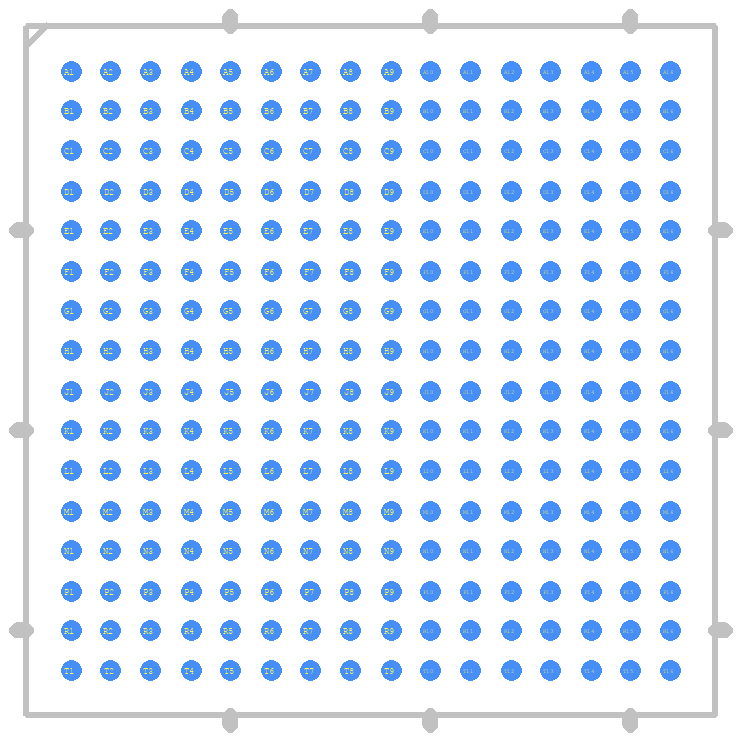

AD6654BBCZ - Analog Devices PCB footprint - Other - Other - BGA256C100P16X16_1700X1700X185

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AD6654BBCZ
Part Number AD6654BBCZ
Manufacturer Analog Devices
Pin Count 256
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - BGA256C100P16X16_1700X1700X185
Released Date Jan 10, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

AD6654BBCZ Details

Manufacturer Part Number:
AD6654BBCZ
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Not Recommended
Part Package Code:
BGA
Package Description:
LEAD FREE, MO-192-AAF-1, CSPBGA-256
Pin Count:
256
Manufacturer Package Code:
BC-256-2
Country Of Origin:
Singapore
ECCN Code:
5A991.G
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
3
JESD-30 Code:
S-PBGA-B256
JESD-609 Code:
e1
Length:
17 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
256
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-25 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
BGA
Package Shape:
SQUARE
Package Style:
GRID ARRAY
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.85 mm
Supply Voltage-Nom:
1.8 V
Surface Mount:
YES
Telecom IC Type:
BASEBAND CIRCUIT
Temperature Grade:
OTHER
Terminal Finish:
Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form:
BALL
Terminal Pitch:
1 mm
Terminal Position:
BOTTOM
Width:
17 mm

AD6654BBCZ Frequently Asked Questions (FAQs)

A good PCB layout for the AD6654BBCZ involves keeping the analog and digital sections separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane. The datasheet provides a recommended PCB layout, but it's also recommended to consult with Analog Devices' application notes and PCB layout guidelines for more detailed information.
To optimize the AD6654BBCZ's performance, it's essential to understand the specific requirements of your application. This includes factors such as the input signal frequency, amplitude, and impedance, as well as the desired output data rate and format. Consult with Analog Devices' application notes and technical support to determine the optimal settings for your specific application. Additionally, consider using the AD6654BBCZ's built-in calibration features and adjustable gain and offset settings to optimize performance.
Potential sources of error in the AD6654BBCZ include noise, distortion, and offset errors. To mitigate these errors, it's essential to follow proper PCB layout and design guidelines, use adequate decoupling and filtering, and ensure that the device is operated within its recommended specifications. Additionally, consider using the AD6654BBCZ's built-in error correction features, such as its internal voltage reference and clock circuitry, to minimize errors.
The AD6654BBCZ has a parallel output interface that can be easily interfaced with most microcontrollers or FPGAs. Consult with the datasheet and application notes for specific interface guidelines, including pin assignments, data formats, and clocking requirements. Additionally, consider using a dedicated interface IC or FPGA IP core to simplify the interface design and reduce development time.
The AD6654BBCZ has a maximum junction temperature of 150°C, and it's essential to ensure that the device operates within its recommended temperature range to ensure reliable operation. This can be achieved through proper thermal management, including the use of heat sinks, thermal interfaces, and airflow management. Consult with the datasheet and application notes for specific thermal management guidelines and recommendations.

Trust Checks

System Verified

AD6654BBCZ Overview

Use the download button to access the AD6654BBCZ schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like AD665, or try a keyword search, such as Cellular Telephone Circuits
