AD6674BCPZRL7-500 - Analog Devices

Description: RF IC IF Receiver Cellular 385MHz 64-LFCSP (9x9)

Download AD6674BCPZRL7-500 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD6674BCPZRL7-500 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

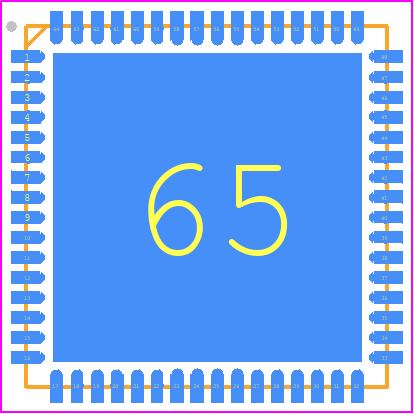

AD6674BCPZRL7-500 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE_2023-4
click to zoom
3D Models
AD6674BCPZRL7-500 - Analog Devices - 3D model - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE_2023-4
click to zoom

AD6674BCPZRL7-500 Details

  • Manufacturer Part Number:

    AD6674BCPZRL7-500

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-64

  • Pin Count:

    64

  • Manufacturer Package Code:

    CP-64-15

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-30 Code:

    S-XQCC-N64

  • JESD-609 Code:

    e3

  • Length:

    9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    1.25 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    9 mm

AD6674BCPZRL7-500 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AD6674BCPZRL7-500 can be found in the AD6674 Evaluation Board documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the AD6674 datasheet, which highlights key considerations for signal routing, grounding, and decoupling.
  • To optimize the performance of the AD6674BCPZRL7-500, it's essential to carefully consider the analog input signal chain, including the signal source, amplification, filtering, and attenuation. Analog Devices provides application notes and design tools, such as the AD6674 Evaluation Board and the Analog Devices JESD204B IP Core, to help engineers optimize their design. Additionally, consulting with Analog Devices' technical support team or seeking guidance from experienced engineers can be beneficial.
  • The AD6674BCPZRL7-500 is a high-speed, high-power device that requires careful thermal management to ensure reliable operation. Engineers should consider the thermal resistance of the package, the PCB material, and the ambient temperature. Analog Devices recommends using a heat sink or a thermal pad to dissipate heat, and provides thermal management guidelines in the AD6674 datasheet and application notes.
  • To troubleshoot issues with the AD6674BCPZRL7-500, engineers should first consult the datasheet and application notes to ensure that the device is properly configured and that the analog input signal chain is correct. Next, they should use debugging tools, such as logic analyzers or oscilloscopes, to capture and analyze the digital output data. Analog Devices also provides a troubleshooting guide in the AD6674 datasheet, which covers common issues and their solutions.
  • The AD6674BCPZRL7-500 is not a radiation-hardened or space-grade device. However, Analog Devices offers radiation-hardened and space-grade versions of some of its products, which are designed to meet the specific requirements of space and defense applications. Engineers should contact Analog Devices' technical support team to discuss their specific requirements and to determine the availability of radiation-hardened or space-grade options.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD6674BCPZRL7-500 Overview

Use the download button to access the AD6674BCPZRL7-500 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD667, or try a keyword search, such as Other Telecom ICs
