AD688SQ - Rochester Electronics

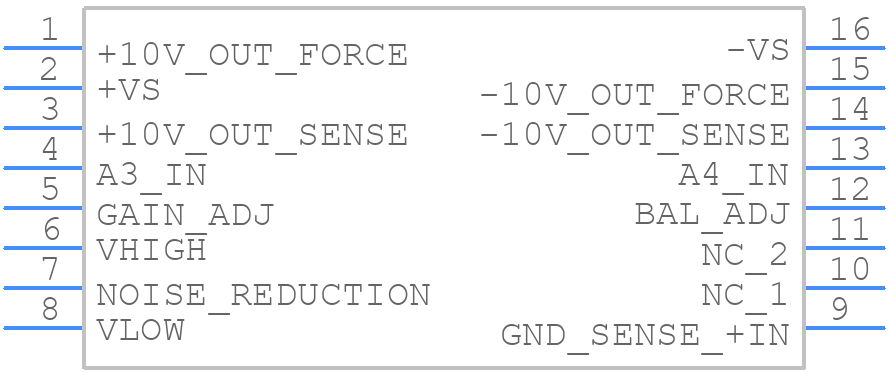

AD688SQ Details

• Manufacturer Part Number:

  AD688SQ

• Part Life Cycle Code:

  Active

• Part Package Code:

  DIP

• Package Description:

  DIP,

• Pin Count:

  16

• Reach Compliance Code:

  Unknown

• Manufacturer:

  Rochester Electronics LLC

• Additional Feature:

  -10V OUTPUT ALSO AVAILABLE, -13.5V TO -18V SUPPLY IS ALSO REQUIRED

• Analog IC - Other Type:

  THREE TERMINAL VOLTAGE REFERENCE

• JESD-30 Code:

  R-GDIP-T16

• Length:

  19.05 mm

• Number of Functions:

  1

• Number of Outputs:

  2

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output Voltage-Max:

  10.005 V

• Output Voltage-Min:

  9.995 V

• Output Voltage-Nom:

  10 V

• Package Body Material:

  CERAMIC, GLASS-SEALED

• Package Code:

  DIP

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  COMMERCIAL

• Seated Height-Max:

  5.08 mm

• Supply Voltage-Max (Vsup):

  18 V

• Supply Voltage-Min (Vsup):

  13.5 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  NO

• Temp Coef of Voltage-Max:

  6 ppm/°C

• Temperature Grade:

  MILITARY

• Terminal Finish:

  NOT SPECIFIED

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Trim/Adjustable Output:

  NO

• Width:

  7.62 mm
