AD693AD footprint, schematic symbol and 3D model by Analog Devices

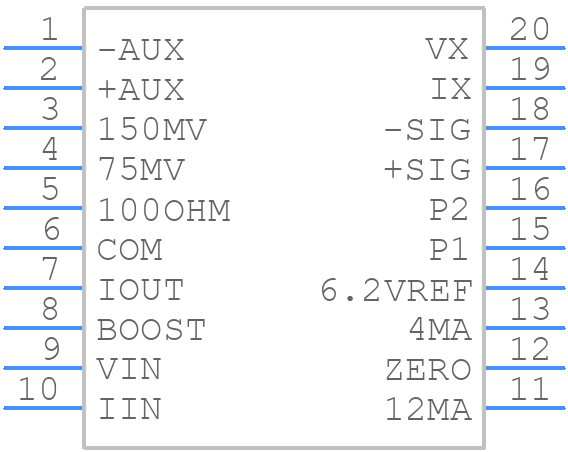

Symbol

click to zoom

PCB Footprints

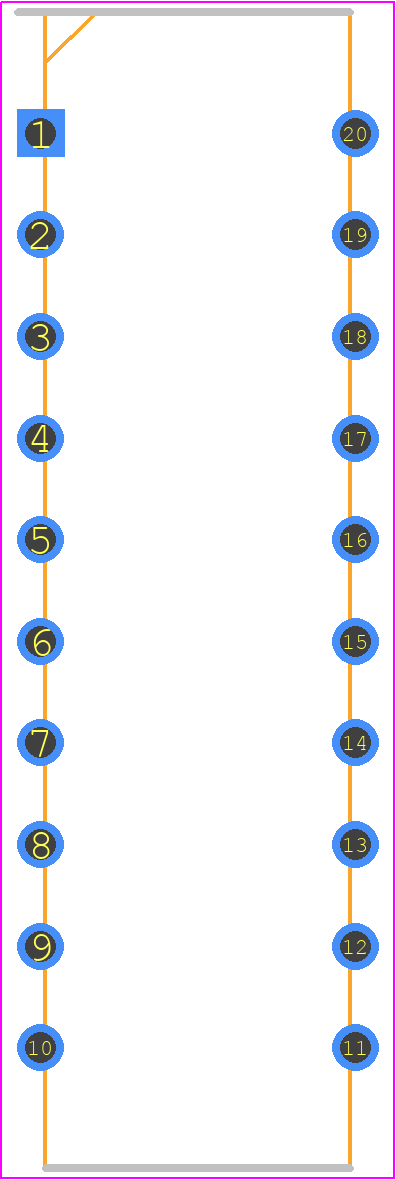

AD693AD - Analog Devices PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - D-20

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AD693AD
Part Number AD693AD
Manufacturer Analog Devices
Pin Count 20
Part Category Integrated Circuit
Package Category Ceramic Dual-In-Line Packages
Footprint Name Ceramic Dual-In-Line Packages - D-20
Released Date Nov 3, 2015
Last Modified Date May 7, 2025 11:33 AM UTC
Pinout / Pin List Click Here (Member Only)

AD693AD Details

Manufacturer Part Number:
AD693AD
Source Url Status Check Date:
2013-05-01 14:56:16.32
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Part Life Cycle Code:
Active
Part Package Code:
DIP
Package Description:
DIP-20
Pin Count:
20
Manufacturer Package Code:
D-20
Country Of Origin:
Philippines
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
10
Analog IC - Other Type:
ANALOG CIRCUIT
JESD-30 Code:
R-CDIP-T20
JESD-609 Code:
e0
Number of Functions:
1
Number of Terminals:
20
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
CERAMIC, METAL-SEALED COFIRED
Package Code:
DIP
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Qualification Status:
Not Qualified
Seated Height-Max:
5.08 mm
Supply Current-Max (Isup):
0.7 mA
Supply Voltage-Max (Vsup):
36 V
Supply Voltage-Min (Vsup):
12 V
Supply Voltage-Nom (Vsup):
24 V
Surface Mount:
NO
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Tin/Lead (Sn63Pb37)
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Width:
7.62 mm

AD693AD Frequently Asked Questions (FAQs)

A good layout and grounding technique is crucial for the AD693AD. It is recommended to use a multi-layer PCB with a solid ground plane, and to keep the analog and digital grounds separate. The AD693AD should be placed close to the analog ground plane, and the input and output traces should be kept short and away from digital signals.
To ensure the accuracy of the AD693AD's output voltage, it is recommended to use a high-precision voltage reference, such as the ADR421 or ADR452, and to keep the input voltage noise to a minimum. Additionally, the output voltage should be filtered using a low-pass filter to reduce noise and ripple.
The maximum output current of the AD693AD is 10mA. However, it is recommended to limit the output current to 5mA or less to ensure the highest accuracy and stability.
To protect the AD693AD from overvoltage and ESD damage, it is recommended to use a voltage clamp or a transient voltage suppressor (TVS) diode at the input, and to follow proper ESD handling and storage procedures.
The AD693AD is rated for operation from -40°C to 125°C. However, the accuracy and stability of the device may be affected at high temperatures. It is recommended to derate the output voltage and current at high temperatures, and to ensure good thermal management and heat sinking.

Trust Checks

Community Provided

System Verified

Community Approved

AD693AD Overview

Use the download button to access the AD693AD schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like AD693, or try a keyword search, such as Other Signal Circuits
