- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD694AQ
- Part Number AD694AQ
- Manufacturer Analog Devices
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Ceramic Dual-In-Line Packages
- Footprint Name Ceramic Dual-In-Line Packages - Q-16-1
- Released Date Jan 11, 2017
- Last Modified Date Jul 12, 2024 9:38 AM UTC
- Pinout / Pin List Click Here (Member Only)
AD694AQ Details
-
Manufacturer Part Number:
AD694AQ
-
Source Url Status Check Date:
2013-05-01 14:56:16.322
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Part Life Cycle Code:
Active
-
Part Package Code:
DIP
-
Pin Count:
16
-
Manufacturer Package Code:
Q-16
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
AD694AQ Frequently Asked Questions (FAQs)
-
The recommended power-up sequence is to apply VCC first, followed by VEE. This ensures that the internal biasing circuitry is properly established before the amplifier is enabled.
-
To minimize noise and distortion, keep the input and output traces as short as possible, use a ground plane, and avoid running signal traces near the power supply lines. Also, use a low-ESR capacitor for decoupling and place it as close to the device as possible.
-
The AD694AQ can drive a maximum capacitive load of 100 pF. Exceeding this limit may cause instability or oscillation.
-
To compensate for the input bias current, use a resistor in series with the input signal to balance the input currents. The value of the resistor should be equal to the parallel combination of the source impedance and the input impedance of the amplifier.
-
The AD694AQ's performance is affected by temperature, with changes in offset voltage, gain, and bandwidth. The device is specified to operate over a temperature range of -40°C to +125°C, but the user should consult the datasheet for specific temperature-related specifications.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
AD694AQ Overview

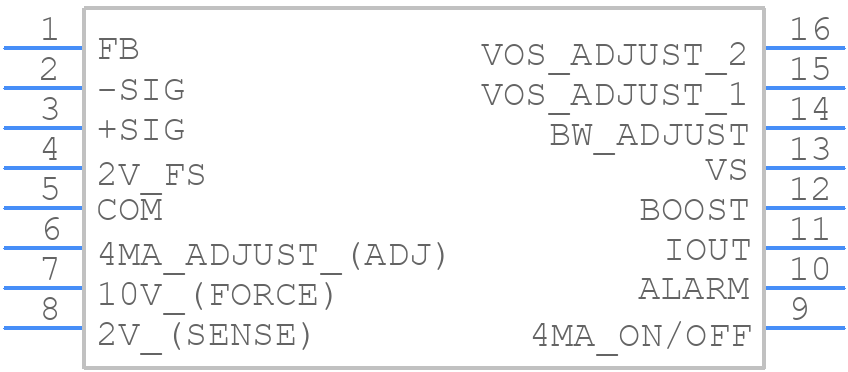

Use the download button to access the AD694AQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD694,
or try a keyword search, such as Other Signal Circuits
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
