AD698SQ - Analog Devices

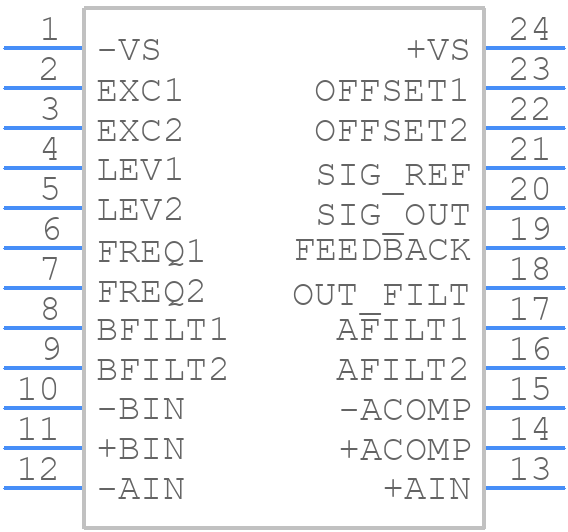

AD698SQ Details

• Manufacturer Part Number:

  AD698SQ

• Source Url Status Check Date:

  2013-05-01 14:56:16.344

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Part Life Cycle Code:

  Not Recommended

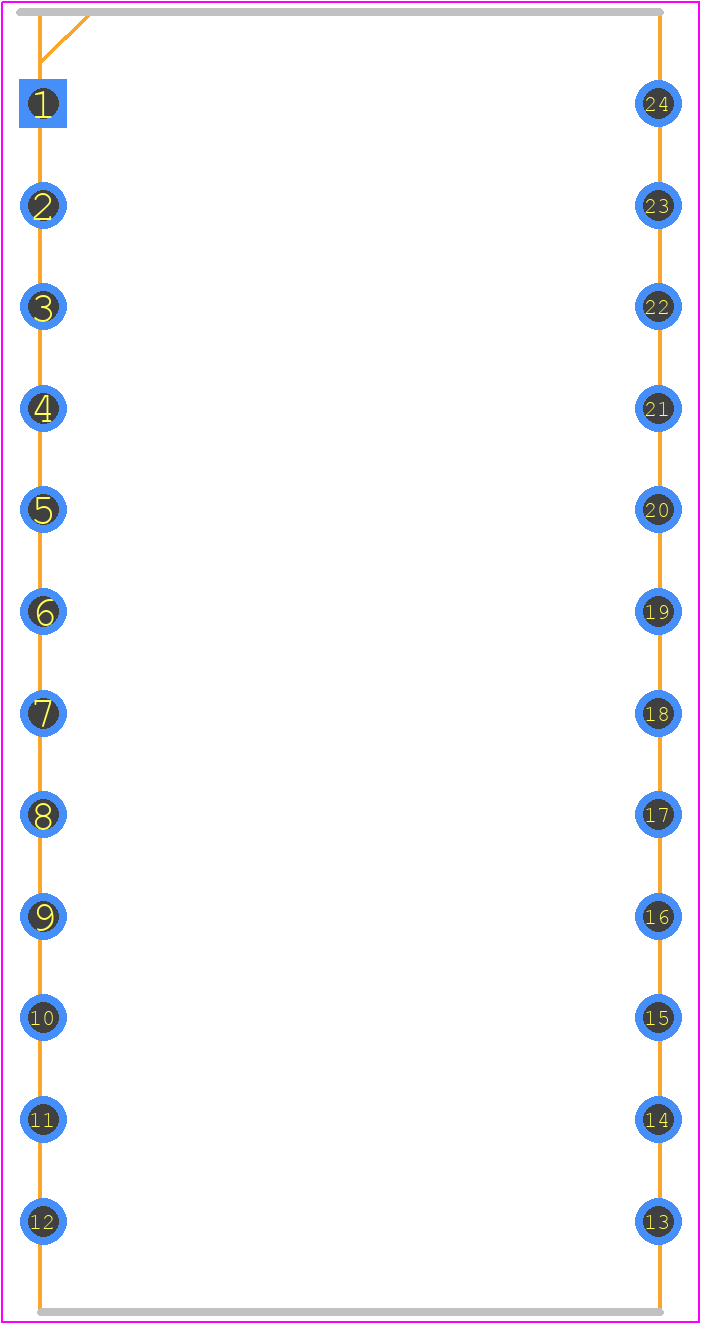

• Part Package Code:

  DIP

• Package Description:

  DIP-24

• Pin Count:

  24

• Manufacturer Package Code:

  Q-24-2

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  3

• Analog Input Voltage-Max:

  2.3 V

• Angular Accuracy-Max:

  2 arc min

• Converter Type:

  SYNCHRO OR RESOLVER TO DIGITAL CONVERTER

• JESD-30 Code:

  R-GDIP-T24

• JESD-609 Code:

  e0

• Negative Supply Voltage-Max:

  -18 V

• Negative Supply Voltage-Min:

  -6.5 V

• Negative Supply Voltage-Nom:

  -15 V

• Number of Bits:

  16

• Number of Functions:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  CERAMIC, GLASS-SEALED

• Package Code:

  DIP

• Package Equivalence Code:

  DIP24,.6

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.08 mm

• Signal/Output Frequency:

  10000 Hz

• Supply Voltage-Max:

  18 V

• Supply Voltage-Min:

  6.5 V

• Supply Voltage-Nom:

  15 V

• Surface Mount:

  NO

• Temperature Grade:

  MILITARY

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Tracking Rate-Max:

  18 rps

• Width:

  15.24 mm
