AD7091R-5BCPZ-RL7 - Analog Devices

Description: Analog to Digital Converters - ADC 4 chn 12bit SAR ADC, ref (typical), I2C

Download AD7091R-5BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

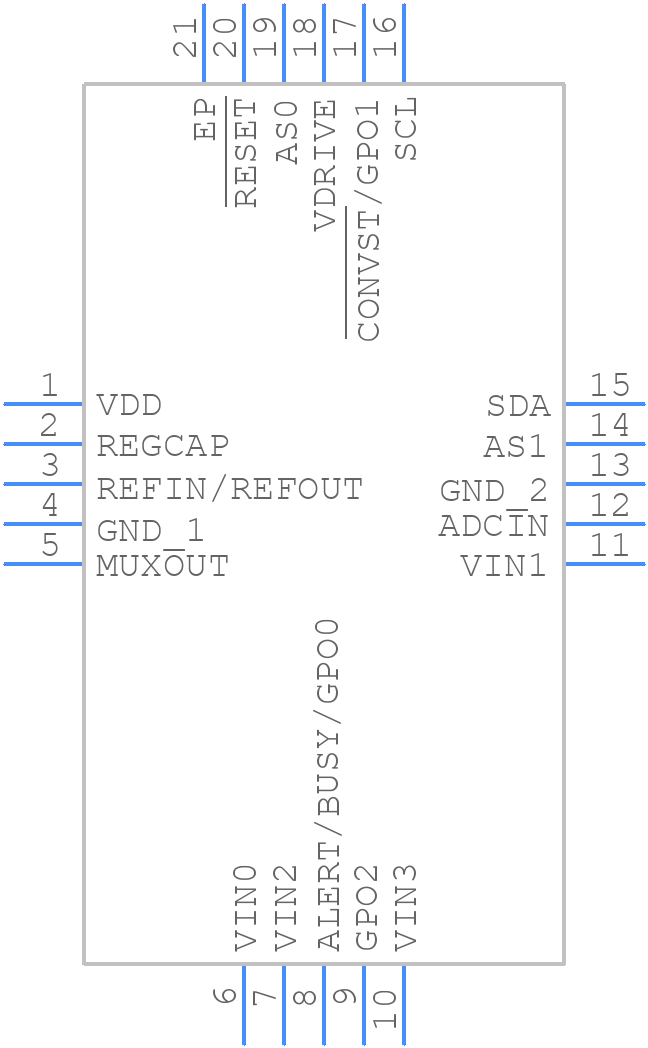

Symbol
AD7091R-5BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7091R-5BCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 20-Lead Lead Frame Chip Scale Package [LFCSP] 4 mm × 4 mm Body and 0.75 mm Package Height (CP-20-10)
click to zoom
3D Models
AD7091R-5BCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - 20-Lead Lead Frame Chip Scale Package [LFCSP] 4 mm × 4 mm Body and 0.75 mm Package Height (CP-20-10)
click to zoom

AD7091R-5BCPZ-RL7 Details

  • Manufacturer Part Number:

    AD7091R-5BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-10

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    5.25 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.0305%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.105 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

AD7091R-5BCPZ-RL7 Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD7091R-5BCPZ-RL7 involves keeping the analog and digital sections separate, using a ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a solid ground plane, and to keep the analog and digital traces separate and away from each other.
  • The recommended power-up sequence for the AD7091R-5BCPZ-RL7 is to power up the VDD pin first, followed by the VIO pin. This ensures that the internal voltage regulators are powered up correctly and avoids any potential issues with the device's operation.
  • The maximum allowed capacitance on the REF pin of the AD7091R-5BCPZ-RL7 is 10nF. Exceeding this value can affect the device's performance and accuracy.
  • To ensure that the AD7091R-5BCPZ-RL7 is operating within its specified temperature range, it's recommended to use a thermistor or a temperature sensor to monitor the device's temperature. Additionally, the device should be operated in a well-ventilated area, and any heat sinks or thermal interfaces should be designed to ensure good thermal conductivity.
  • The recommended method for driving the SCLK pin of the AD7091R-5BCPZ-RL7 is to use a clock signal with a frequency between 50 kHz and 1 MHz, and with a duty cycle of 40% to 60%. The clock signal should also be free of noise and jitter to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7091R-5BCPZ-RL7 Overview

Use the download button to access the AD7091R-5BCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD709, or try a keyword search, such as Analog to Digital Converters
