AD7091RBRMZ-RL7 - Analog Devices

Description: Analog to Digital Converters - ADC 1 channel 12bit SAR ADC, ref (typ), SPI

Download AD7091RBRMZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

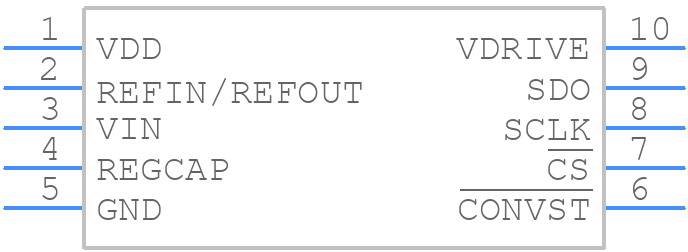

Symbol
