AD711KRZ-REEL - Analog Devices

Description: Precision, Low Cost, High Speed, BiFET Op Amp

Download AD711KRZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

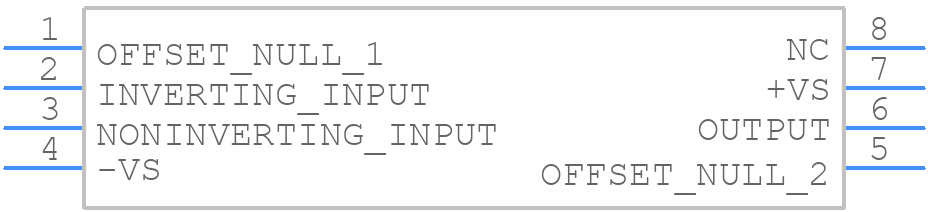

Symbol
AD711KRZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD711KRZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RN-8 (SOIC)
click to zoom
3D Models
AD711KRZ-REEL - Analog Devices - 3D model - Small Outline Packages - RN-8 (SOIC)
click to zoom

AD711KRZ-REEL Details

  • Manufacturer Part Number:

    AD711KRZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, PLASTIC, MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0001 µA

  • Bias Current-Max (IIB) @25C:

    0.0001 µA

  • Common-mode Reject Ratio-Min:

    74 dB

  • Common-mode Reject Ratio-Nom:

    80 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.0006 µA

  • Input Offset Voltage-Max:

    1000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    18 V/us

  • Slew Rate-Nom:

    20 V/us

  • Supply Current-Max:

    3 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Unity Gain BW-Nom:

    4000

  • Voltage Gain-Min:

    100000

  • Wideband:

    NO

  • Width:

    3.9 mm

AD711KRZ-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD711KRZ-REEL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the input and output stages. A 4-layer PCB with a dedicated analog ground layer is recommended. Additionally, the input and output pins should be routed away from each other to minimize capacitive coupling.
  • To ensure the AD711KRZ-REEL operates within its specified temperature range, it's essential to provide adequate heat sinking and thermal management. This can be achieved by using a heat sink or a thermally conductive material, such as a metal-clad PCB, and ensuring good airflow around the device. Additionally, the device should be operated within its specified power dissipation limits.
  • The recommended input impedance for the AD711KRZ-REEL is 1 kΩ or higher, while the recommended output impedance is 2 kΩ or lower. This ensures that the device can drive the desired load and maintain its specified performance. Impedance matching networks may be required to achieve optimal performance.
  • To handle EMI and RFI with the AD711KRZ-REEL, it's essential to use proper shielding, grounding, and filtering techniques. This includes using a metal shield around the device, connecting the shield to the analog ground, and using ferrite beads or chokes to filter out high-frequency noise. Additionally, the device should be placed away from sources of EMI and RFI.
  • The recommended power supply decoupling for the AD711KRZ-REEL involves using a combination of ceramic and electrolytic capacitors. A 10 μF ceramic capacitor should be placed close to the device's power pins, and a 10 μF electrolytic capacitor should be placed further away from the device. This helps to filter out high-frequency noise and ensure stable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD711KRZ-REEL Overview

Use the download button to access the AD711KRZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD711, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
