AD7124-4BBCPZ-RL - Analog Devices

Description: 4-Channel, Low Noise, Low Power, 24-Bit, Sigma-Delta ADC with PGA and Reference

Download AD7124-4BBCPZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

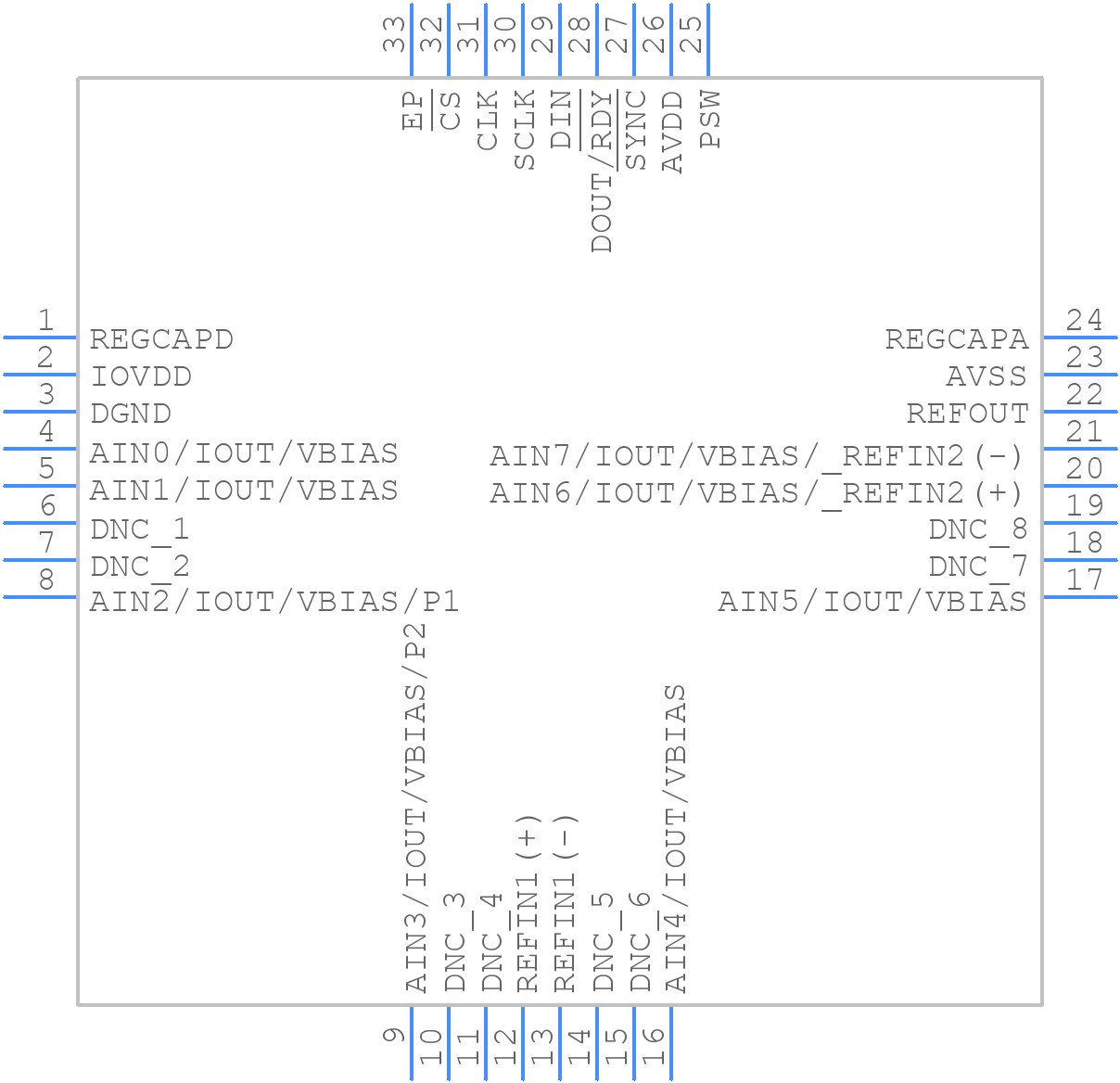

AD7124-4BBCPZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7124-4BBCPZ-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-30*
click to zoom
3D Models
AD7124-4BBCPZ-RL - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-30*
click to zoom

AD7124-4BBCPZ-RL Details

  • Manufacturer Part Number:

    AD7124-4BBCPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-30

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-06-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.0192 MHz

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    0.3 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

AD7124-4BBCPZ-RL Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD7124-4BBCPZ-RL can be found in the AD7124 Evaluation Board documentation and the AD7124 Layout and Placement Application Note. It is essential to follow these guidelines to ensure optimal performance and minimize noise and interference.
  • The AD7124-4BBCPZ-RL has an internal calibration mechanism that can be initiated through the SPI interface. The calibration process involves writing specific commands to the device to perform offset and gain calibration. Refer to the AD7124 datasheet and the AD7124 Calibration Application Note for detailed calibration procedures.
  • The maximum sampling rate of the AD7124-4BBCPZ-RL is 19.2 kSPS. However, the actual sampling rate may be limited by the system's clock frequency, filter settings, and other factors. Refer to the AD7124 datasheet and the AD7124 Sampling Rate Application Note for more information.
  • The AD7124-4BBCPZ-RL has built-in overvoltage and undervoltage protection. However, it is still essential to implement external protection circuitry to prevent damage to the device. Refer to the AD7124 datasheet and the AD7124 Overvoltage and Undervoltage Protection Application Note for guidance on designing protection circuits.
  • The power consumption of the AD7124-4BBCPZ-RL depends on the operating mode, sampling rate, and other factors. The typical power consumption is around 15 mW at 3.3 V supply voltage. Refer to the AD7124 datasheet and the AD7124 Power Consumption Application Note for more information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7124-4BBCPZ-RL Overview

Use the download button to access the AD7124-4BBCPZ-RL schematic symbol, PCB footprint, and 3D model.
