AD7124-4BBCPZ-RL7 - Analog Devices

Description: 4-Channel, Low Noise, Low Power, 24-Bit, Sigma-Delta ADC with PGA and Reference

Download AD7124-4BBCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

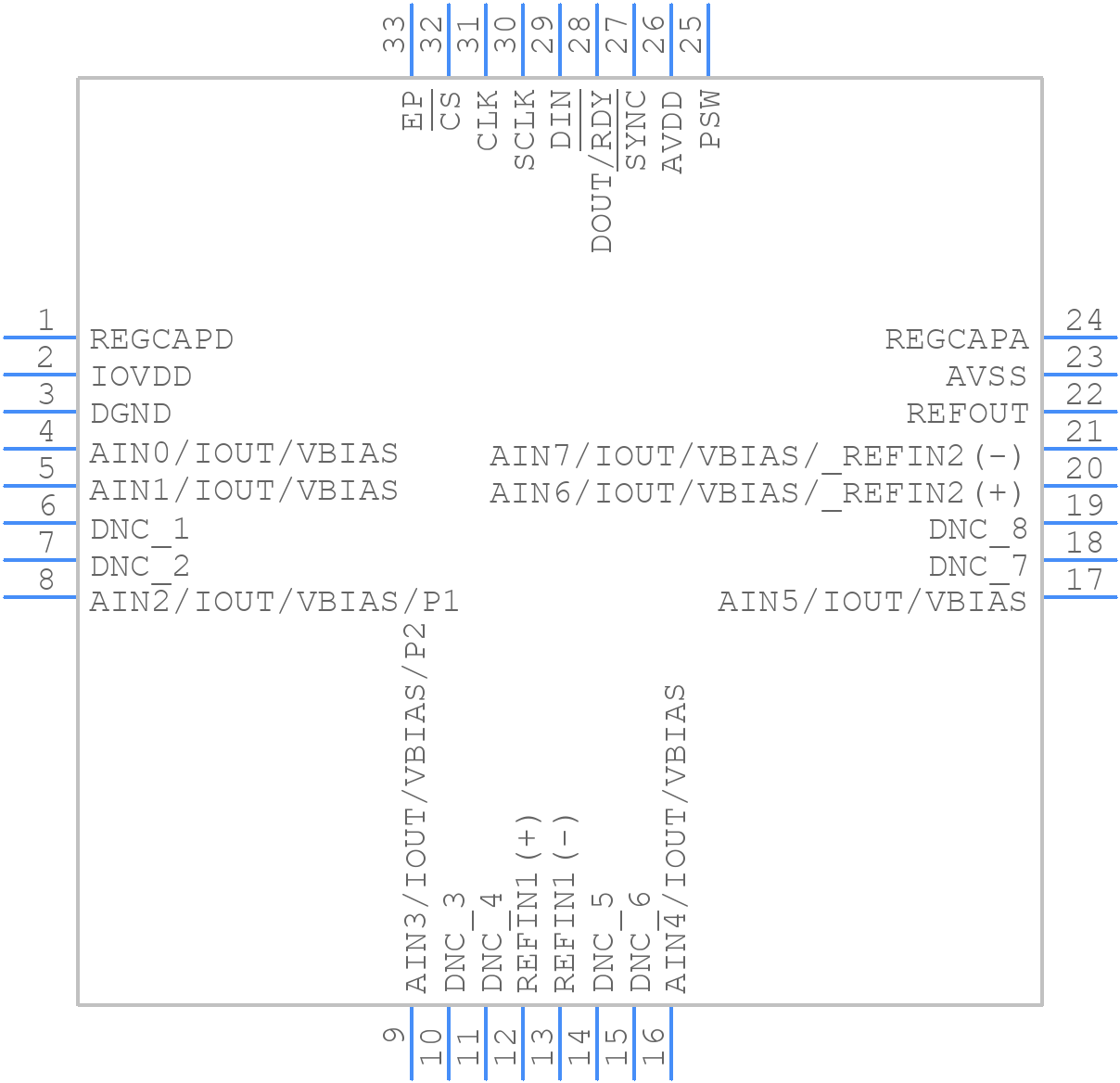

Symbol
AD7124-4BBCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7124-4BBCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-30*
click to zoom
3D Models
AD7124-4BBCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-30*
click to zoom

AD7124-4BBCPZ-RL7 Details

  • Manufacturer Part Number:

    AD7124-4BBCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-30

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-06-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.0192 MHz

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    0.3 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

AD7124-4BBCPZ-RL7 Frequently Asked Questions (FAQs)

  • The AD7124-4BBCPZ-RL7 requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources.
  • To optimize the AD7124-4BBCPZ-RL7's performance for your specific application, you should consider factors such as the input signal range, sampling rate, and noise requirements. You may need to adjust the gain, filter settings, and other parameters to achieve the desired performance. Consult the datasheet and application notes for guidance.
  • The AD7124-4BBCPZ-RL7 has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, it is essential to provide adequate heat sinking, avoid overheating, and follow the recommended thermal design guidelines. Consult the datasheet and thermal design resources for more information.
  • To troubleshoot common issues with the AD7124-4BBCPZ-RL7, start by checking the power supply, clock, and input signal integrity. Verify that the device is properly configured and that the analog and digital grounds are separated. Consult the datasheet, application notes, and online resources for troubleshooting guides and FAQs.
  • The AD7124-4BBCPZ-RL7 is a sensitive analog device that requires careful consideration of electromagnetic interference (EMI) and radio-frequency interference (RFI). To ensure electromagnetic compatibility, follow proper PCB design and layout guidelines, use shielding and filtering, and consult the datasheet and application notes for EMI and RFI mitigation strategies.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7124-4BBCPZ-RL7 Overview

Use the download button to access the AD7124-4BBCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
