AD7124-4BRUZ-RL7 footprint, schematic symbol and 3D model by Analog Devices

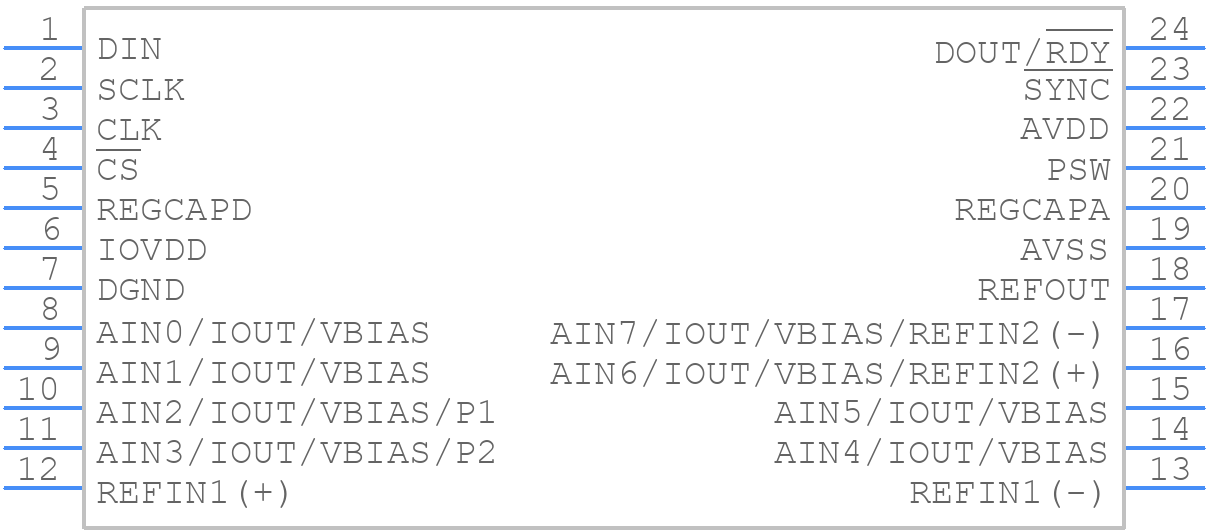

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AD7124-4BRUZ-RL7
Part Number AD7124-4BRUZ-RL7
Manufacturer Analog Devices
Pin Count 24
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - RU-24 (TSSOP)
Released Date May 16, 2022
Last Modified Date Mar 25, 2026 12:06 PM UTC
Pinout / Pin List Click Here (Member Only)

AD7124-4BRUZ-RL7 Details

Manufacturer Part Number:
AD7124-4BRUZ-RL7
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
TSSOP-24
Pin Count:
24
Manufacturer Package Code:
RU-24
Country Of Origin:
Taiwan
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
10
Analog Input Voltage-Max:
2.5 V
Analog Input Voltage-Min:
-2.5 V
Converter Type:
ADC, DELTA-SIGMA
JESD-30 Code:
R-PDSO-G24
JESD-609 Code:
e3
Length:
7.8 mm
Linearity Error-Max (EL):
0.0015%
Moisture Sensitivity Level:
1
Number of Analog In Channels:
4
Number of Bits:
24
Number of Functions:
1
Number of Terminals:
24
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Bit Code:
OFFSET BINARY
Output Format:
SERIAL
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Sample Rate:
0.0192 MHz
Seated Height-Max:
1.2 mm
Supply Current-Max:
0.3 mA
Supply Voltage-Nom:
3 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm

AD7124-4BRUZ-RL7 Frequently Asked Questions (FAQs)

The AD7124-4BRUZ-RL7 requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources.
To optimize the AD7124-4BRUZ-RL7's performance for your specific application, you should consider factors such as the input signal range, sampling rate, and noise requirements. You may need to adjust the gain, filter settings, and other parameters to achieve the desired performance. Consult the datasheet and application notes for guidance.
The AD7124-4BRUZ-RL7 has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, you should consider thermal management techniques such as heat sinking, thermal interface materials, and airflow. Consult the datasheet and thermal management guidelines for more information.
To troubleshoot common issues with the AD7124-4BRUZ-RL7, start by checking the power supply, clock, and input signal integrity. Verify that the device is properly configured and that the analog and digital grounds are separated. Consult the datasheet, application notes, and online resources for troubleshooting guides and FAQs.
The AD7124-4BRUZ-RL7 is a sensitive analog device that requires careful consideration of electromagnetic interference (EMI) and radio-frequency interference (RFI). To ensure electromagnetic compatibility, follow proper PCB layout and shielding techniques, use EMI filters, and consult the datasheet and application notes for guidance.
