AD7124-4TRUZ-EP - Analog Devices

Description: Analog to Digital Converters - ADC The AD7124-4 is a 4ch 24b ?-? ADC

Download AD7124-4TRUZ-EP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

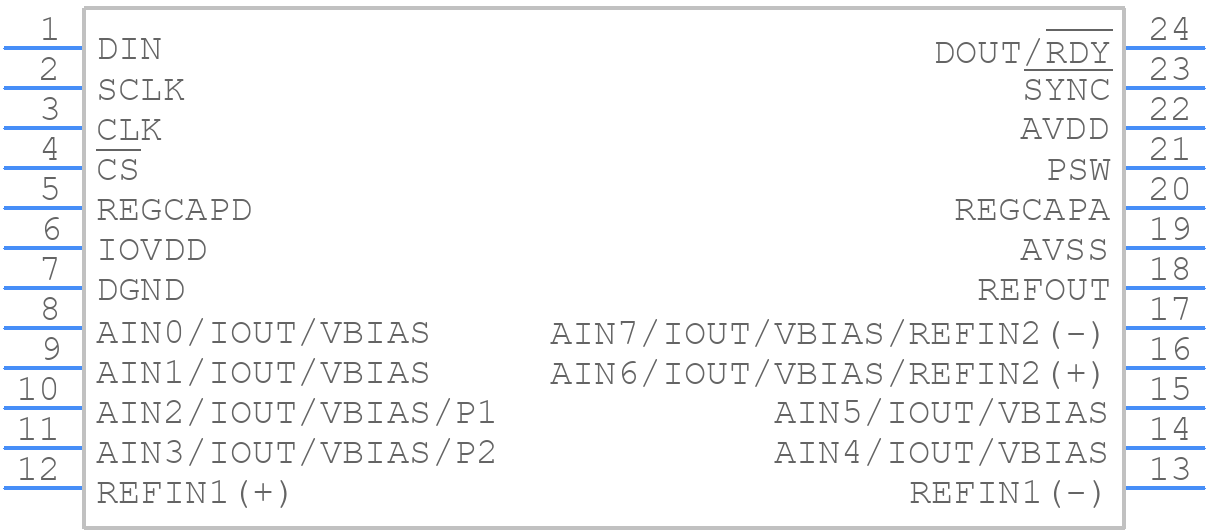

Symbol
AD7124-4TRUZ-EP - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7124-4TRUZ-EP - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 24-Lead Thin Shrink Small Outline Package [TSSOP] (RU-24)
click to zoom
3D Models
AD7124-4TRUZ-EP - Analog Devices - 3D model - Small Outline Packages - 24-Lead Thin Shrink Small Outline Package [TSSOP] (RU-24)
click to zoom

AD7124-4TRUZ-EP Details

  • Manufacturer Part Number:

    AD7124-4TRUZ-EP

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RU-24

  • ECCN Code:

    3A001.A.2.C

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-04-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    3.6 V

  • Analog Input Voltage-Min:

    2.7 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    4

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Bit Code:

    OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    1.2 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD7124-4TRUZ-EP Frequently Asked Questions (FAQs)

  • The AD7124-4TRUZ-EP requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources.
  • To optimize the AD7124-4TRUZ-EP's performance for your specific application, you should consider factors such as the input signal range, sampling rate, and filter settings. You may need to experiment with different settings and configurations to achieve the best results for your application.
  • The AD7124-4TRUZ-EP's ADC has a specified accuracy and linearity, which can be affected by factors such as temperature, voltage supply, and input signal range. It is essential to understand these limitations and consider them when designing your application.
  • The AD7124-4TRUZ-EP can be interfaced with a microcontroller or other digital systems using standard digital communication protocols such as SPI or I2C. You will need to ensure that the interface is properly configured and that the data is correctly formatted and transmitted.
  • The AD7124-4TRUZ-EP requires a stable power supply voltage within the specified range. It is essential to ensure that the power supply is reliable and free from noise and ripple to ensure reliable operation.
