AD7124-8BBCPZ-RL footprint, schematic symbol and 3D model by Analog Devices

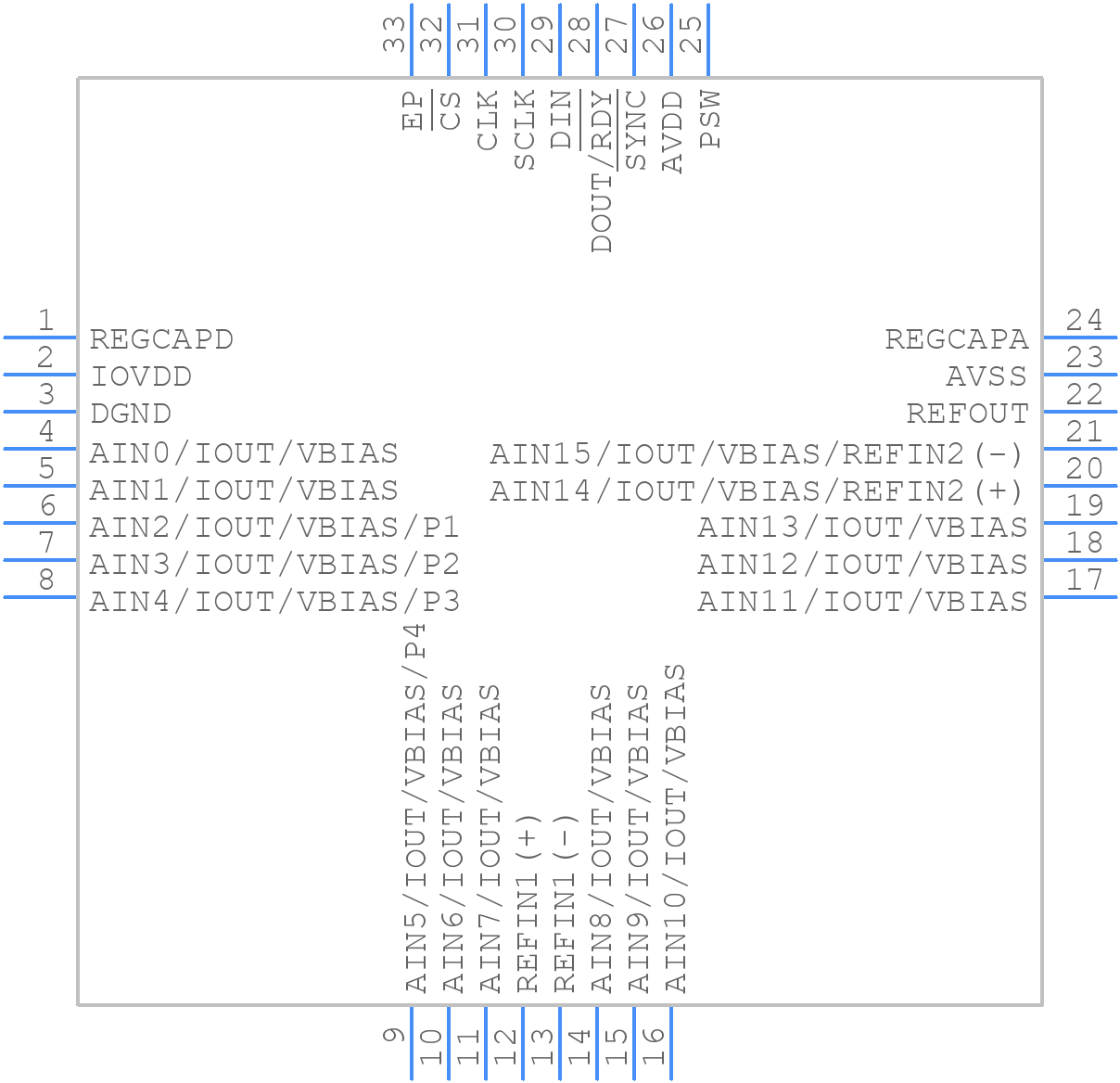

Symbol

click to zoom

PCB Footprints

AD7124-8BBCPZ-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE_2023-6

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AD7124-8BBCPZ-RL
Part Number AD7124-8BBCPZ-RL
Manufacturer Analog Devices
Pin Count 33
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE_2023-6
Released Date May 17, 2023
Last Modified Date May 18, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

AD7124-8BBCPZ-RL Details

Manufacturer Part Number:
AD7124-8BBCPZ-RL
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
LFCSP-32
Pin Count:
32
Manufacturer Package Code:
CP-32-30
Country Of Origin:
South Korea
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Date Of Intro:
2018-04-23
Manufacturer:
Analog Devices Inc
YTEOL:
10
Analog Input Voltage-Max:
2.5 V
Analog Input Voltage-Min:
-2.5 V
Converter Type:
ADC, DELTA-SIGMA
JESD-30 Code:
S-XQCC-N32
JESD-609 Code:
e3
Length:
5 mm
Linearity Error-Max (EL):
0.0015%
Moisture Sensitivity Level:
3
Number of Analog In Channels:
8
Number of Bits:
24
Number of Functions:
1
Number of Terminals:
32
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Bit Code:
OFFSET BINARY
Output Format:
SERIAL
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Sample Rate:
0.0192 MHz
Seated Height-Max:
0.8 mm
Supply Current-Max:
3 mA
Supply Voltage-Nom:
3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
5 mm

AD7124-8BBCPZ-RL Frequently Asked Questions (FAQs)

The AD7124 requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources.
To optimize the AD7124's performance, it is recommended to consult the datasheet and application notes, and to consider factors such as the input signal range, sampling rate, and filter settings. Additionally, Analog Devices provides a range of evaluation boards and software tools to help engineers optimize the device's performance for their specific application.
The AD7124 is specified to operate over a temperature range of -40°C to +125°C, but it is recommended to consult the datasheet for specific temperature-related specifications and limitations.
The AD7124 is specified to operate with a power supply voltage of 2.7V to 3.6V, but it is not recommended to use it with a 3.3V or 5V power supply as it may exceed the maximum rating and affect the device's performance and reliability.
To troubleshoot common issues with the AD7124, it is recommended to consult the datasheet and application notes, and to check the device's configuration, layout, and power supply. Additionally, Analog Devices provides a range of technical support resources, including FAQs, forums, and technical support teams, to help engineers troubleshoot and resolve issues.
