AD7124-8BBCPZ-RL7 - Analog Devices

Description: 24 Bit Analog to Digital Converter 8, 15, 16 Input 1 Sigma-Delta 32-LFCSP (5x5)

Download AD7124-8BBCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

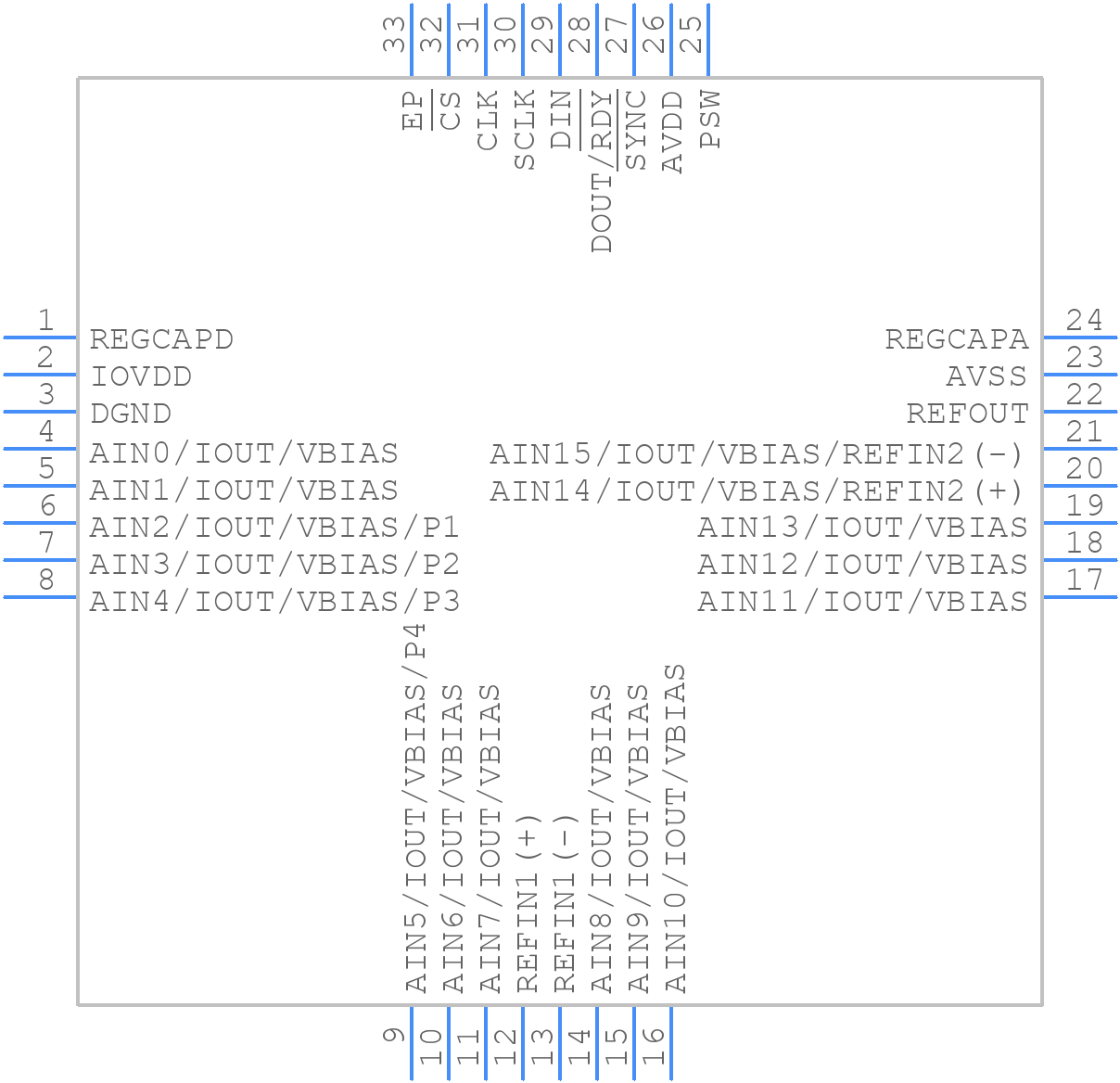

Symbol
AD7124-8BBCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7124-8BBCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE_2023-5
click to zoom
3D Models
AD7124-8BBCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE_2023-5
click to zoom

AD7124-8BBCPZ-RL7 Details

  • Manufacturer Part Number:

    AD7124-8BBCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-30

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-04-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    8

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.0192 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

AD7124-8BBCPZ-RL7 Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD7124-8BBCPZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources to minimize noise. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To optimize the performance of the AD7124-8BBCPZ-RL7 in noisy environments, use a low-pass filter at the input, use a shielded cable, and keep the device away from high-frequency sources. Additionally, use a common-mode filter and a differential amplifier to reduce common-mode noise.
  • The maximum sampling rate of the AD7124-8BBCPZ-RL7 is 4.8 kHz, but it can be adjusted based on the application requirements. The device also supports programmable data rates and can be configured for slower or faster sampling rates.
  • The AD7124-8BBCPZ-RL7 has an internal calibration mechanism that can be initiated through the SPI interface. The device also supports external calibration using an external voltage reference. The calibration process involves setting the gain and offset registers to optimize the device's performance.
  • The power consumption of the AD7124-8BBCPZ-RL7 is typically 15 mW at 3 V supply voltage. However, the power consumption can vary depending on the sampling rate, gain, and other configuration settings.
