AD7124-8BCPZ-RL7 - Analog Devices

Description: 3 power modes ► RMS noise ► Low power: 24 nV rms at 1.17 SPS, gain = 128 (255 µA typical) ► Mid power: 20 nV rms at 2.34 SPS, gain = 128 (355 µA typical) ► Full power: 23 nV rms at 9.4 SPS, gain = 128 (930 µA typical) ► Up to 22 noise free bits in all power modes (gain = 1) ► Output data rate ► Full power: 9.38 SPS to 19,200 SPS ► Mid power: 2.34 SPS to 4800 SPS ► Low power: 1.17 SPS to 2400 SPS ► Rail-to-rail analog inputs for gains > 1 ► Simultaneous 50 Hz/60 Hz rejection at 25 SPS (single cy

Download AD7124-8BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

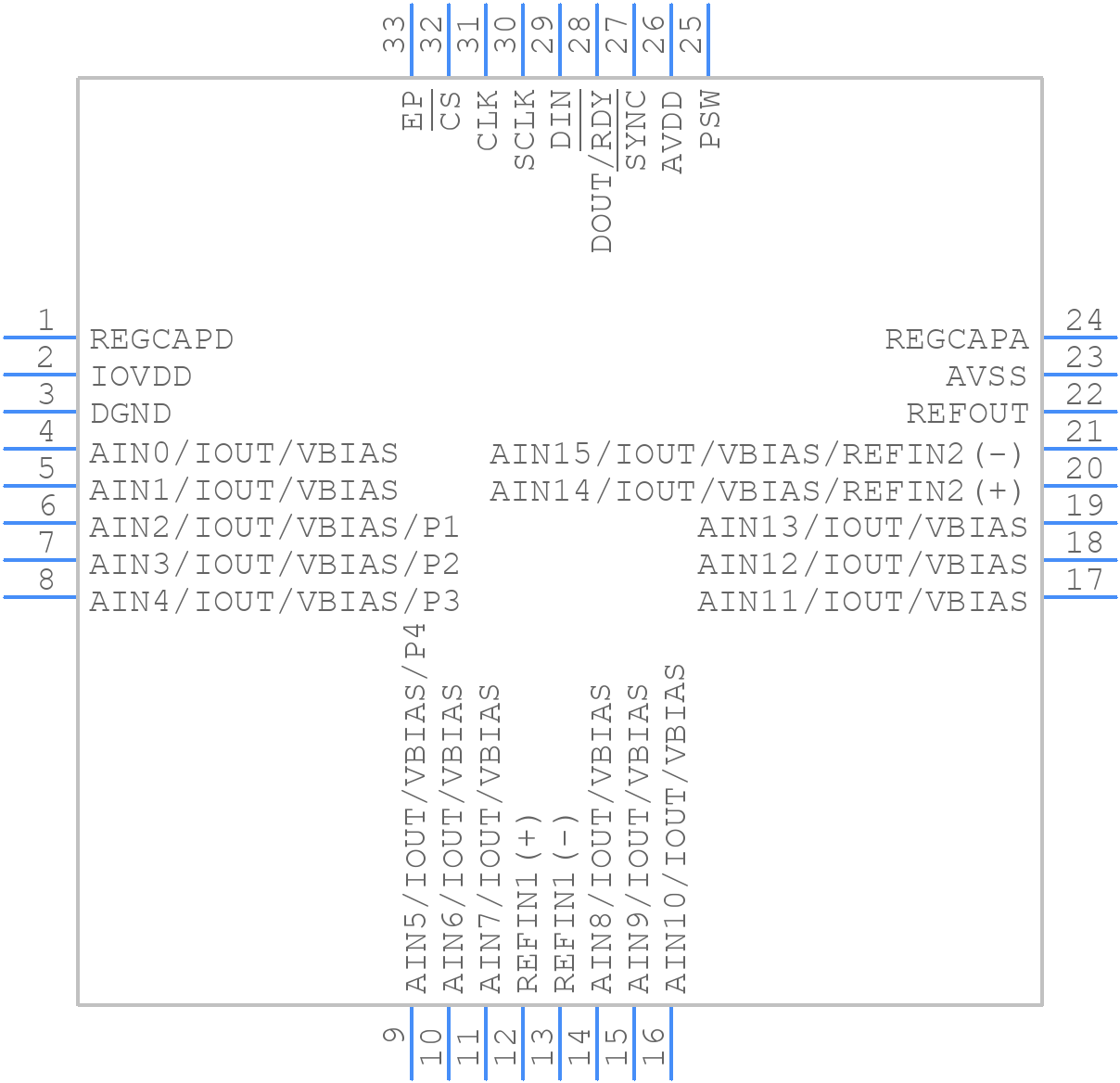

AD7124-8BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7124-8BCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-32-12)
click to zoom
3D Models
AD7124-8BCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-32-12)
click to zoom

AD7124-8BCPZ-RL7 Details

  • Manufacturer Part Number:

    AD7124-8BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    8

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.0192 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

AD7124-8BCPZ-RL7 Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD7124-8BCPZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane and to avoid running digital signals under the device.
  • To optimize the performance of the AD7124-8BCPZ-RL7 in noisy environments, use a low-pass filter on the analog input, use a shielded cable for the analog input, and consider using a common-mode filter on the analog input. Additionally, ensure that the device is properly decoupled and that the power supply is clean and stable.
  • The maximum sampling rate of the AD7124-8BCPZ-RL7 is 19.2 kSPS. However, the actual sampling rate may be limited by the system's clock frequency and the device's settling time.
  • The AD7124-8BCPZ-RL7 has an internal calibration feature that can be enabled through the device's registers. The calibration process involves setting the calibration mode, waiting for the calibration to complete, and then reading the calibration results. The device also has an offset calibration feature that can be used to remove any offset errors.
  • The power consumption of the AD7124-8BCPZ-RL7 depends on the operating mode and the sampling rate. In normal mode, the device consumes around 15 mW at 3.3 V and 19.2 kSPS. In low-power mode, the device consumes around 5 mW at 3.3 V and 1.2 kSPS.
