AD712KRZ-REEL7 - Analog Devices

Description: Precision, Low Cost, High Speed, BiFET Dual Op Amp

Download AD712KRZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

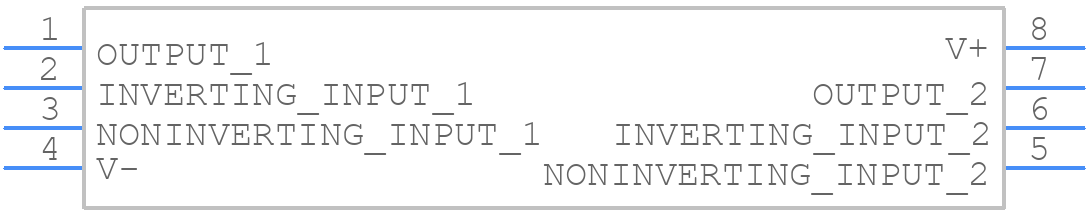

AD712KRZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD712KRZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-8 (SOIC)
click to zoom
3D Models
AD712KRZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - R-8 (SOIC)
click to zoom

AD712KRZ-REEL7 Details

  • Manufacturer Part Number:

    AD712KRZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.000025 µA

  • Bias Current-Max (IIB) @25C:

    0.0001 µA

  • Common-mode Reject Ratio-Min:

    74 dB

  • Common-mode Reject Ratio-Nom:

    80 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.0006 µA

  • Input Offset Voltage-Max:

    2000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    YES

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    18 V/us

  • Slew Rate-Nom:

    20 V/us

  • Supply Current-Max:

    6 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    4000

  • Voltage Gain-Min:

    100000

  • Wideband:

    NO

  • Width:

    3.9 mm

AD712KRZ-REEL7 Frequently Asked Questions (FAQs)

  • The AD712KRZ-REEL7 requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources.
  • To optimize the AD712KRZ-REEL7's performance for your specific application, you should consider factors such as the input signal range, sampling rate, and noise requirements. You may need to adjust the gain, filter settings, and other parameters to achieve the desired performance. Consult the datasheet and application notes for guidance.
  • The AD712KRZ-REEL7 has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, you should consider thermal management techniques such as heat sinking, thermal interface materials, and airflow. You should also follow the recommended operating conditions and derating guidelines provided in the datasheet.
  • To troubleshoot common issues with the AD712KRZ-REEL7, start by checking the power supply, clock, and input signal connections. Verify that the device is properly configured and that the input signals are within the recommended range. Use oscilloscopes and other diagnostic tools to identify the source of the issue. Consult the datasheet, application notes, and online resources for guidance.
  • The AD712KRZ-REEL7 is a sensitive analog device that requires careful consideration of electromagnetic interference (EMI) and radio-frequency interference (RFI). To ensure electromagnetic compatibility, follow proper PCB layout and shielding techniques, use EMI filters and shielding components, and consult the datasheet and application notes for guidance.
