AD712TRZ-EP - Analog Devices

Description: OP-AMP

Download AD712TRZ-EP Model

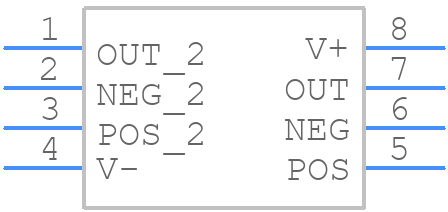

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AD712TRZ-EP - Analog Devices PCB footprint - Other - Other - SOIC127P600X175-8N
click to zoom
3D Models
AD712TRZ-EP - Analog Devices  - 3D model - Other - SOIC127P600X175-8N
click to zoom

AD712TRZ-EP Details

  • Manufacturer Part Number:

    AD712TRZ-EP

  • Source Url Status Check Date:

    2013-05-01 14:56:16.593

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-012-AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0001 µA

  • Bias Current-Max (IIB) @25C:

    0.000075 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    80 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.026 µA

  • Input Offset Voltage-Max:

    4000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    16 V/us

  • Slew Rate-Nom:

    20 V/us

  • Supply Current-Max:

    6.8 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIFET

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    3000

  • Voltage Gain-Min:

    100000

  • Wideband:

    NO

  • Width:

    3.9 mm

AD712TRZ-EP Frequently Asked Questions (FAQs)

  • The AD712TRZ-EP requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • To optimize the AD712TRZ-EP's performance for low-frequency measurements, it is recommended to use a high-pass filter to remove DC offsets, increase the gain of the amplifier, and use a low-pass filter to remove high-frequency noise. Additionally, the device's internal clock can be synchronized with the signal source to reduce noise.
  • The recommended calibration procedure for the AD712TRZ-EP involves applying a known input signal, measuring the output, and adjusting the device's gain and offset to achieve the desired accuracy. The device's internal calibration registers can be used to store the calibration data.
  • To ensure the AD712TRZ-EP's accuracy and linearity over temperature, it is recommended to use a temperature sensor to monitor the device's temperature and adjust the gain and offset accordingly. Additionally, the device's internal temperature compensation can be used to reduce temperature-related errors.
  • The recommended power-up sequence for the AD712TRZ-EP is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and finally the clock signal. This ensures that the device's analog and digital circuits are properly initialized.
