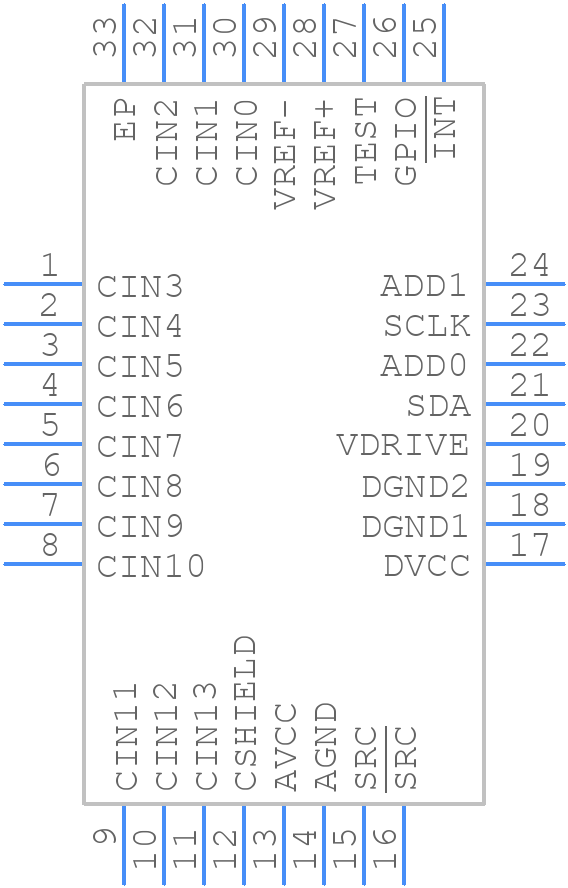

AD7142ACPZ-1REEL - Analog Devices

AD7142ACPZ-1REEL Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the AD7142?
  A good PCB layout for the AD7142 involves keeping the analog and digital sections separate, using a solid ground plane, and minimizing noise coupling. A 4-layer PCB with a dedicated analog ground plane is recommended. The datasheet provides a recommended layout, but additional guidance can be found in the AD7142 evaluation board documentation.
• How do I calibrate the AD7142 for optimal performance?
  The AD7142 has an internal calibration mechanism, but it may require additional external calibration depending on the specific application. A calibration procedure involves applying a known capacitance to the sensor inputs and adjusting the internal calibration registers to achieve optimal performance. The datasheet provides a general calibration procedure, but additional guidance can be found in the AD7142 evaluation board documentation.
• What is the maximum capacitance range that can be measured by the AD7142?
  The AD7142 can measure capacitances up to 100 pF, but the maximum range depends on the specific configuration and the sensor design. The datasheet provides a general guideline, but the actual range may vary depending on the application. It's recommended to consult with Analog Devices' application engineers for specific guidance.
• Can the AD7142 be used in a noisy environment?
  The AD7142 has built-in noise filtering and shielding, but it's still important to take precautions to minimize noise coupling in the PCB layout and design. The device can operate in noisy environments, but the noise floor may affect the measurement accuracy. Additional noise filtering or shielding may be required depending on the specific application.
• How do I interface the AD7142 with a microcontroller?
  The AD7142 has a SPI-compatible interface that can be easily interfaced with most microcontrollers. The datasheet provides a detailed description of the interface protocol, and additional guidance can be found in the AD7142 evaluation board documentation. It's recommended to use a microcontroller with a built-in SPI peripheral for easy communication.
