AD7142ACPZ-500RL7 - Analog Devices

Description: AD7142ACPZ-500RL7, Capacitance to Digital Converter, 16 bit- 32-Pin LFCSP EP

Download AD7142ACPZ-500RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

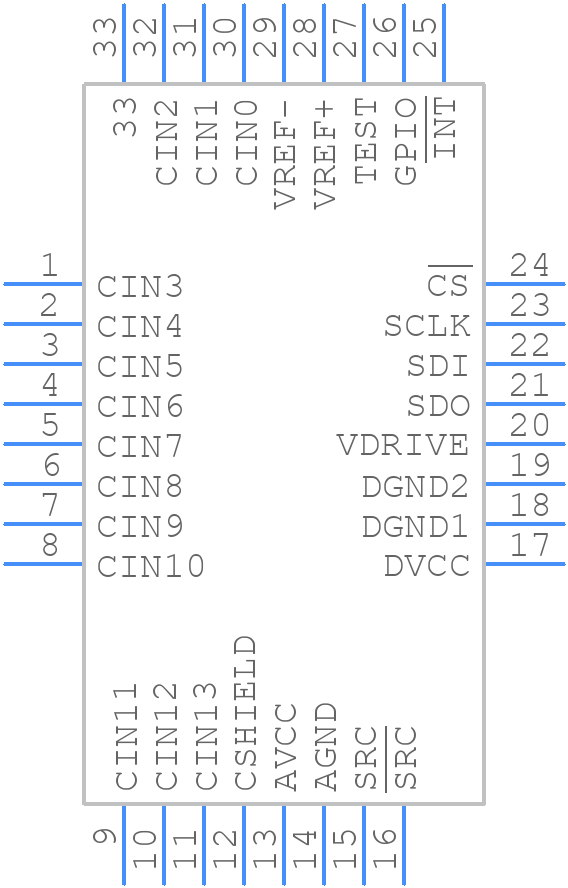

AD7142ACPZ-500RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7142ACPZ-500RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-2(LFCSP_VQ)
click to zoom
3D Models
AD7142ACPZ-500RL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-2(LFCSP_VQ)
click to zoom

AD7142ACPZ-500RL7 Details

  • Manufacturer Part Number:

    AD7142ACPZ-500RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    MO-220VHHD-2, 32 PIN

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-7

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

AD7142ACPZ-500RL7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply connections and keep the capacitors close to the device.
  • Use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the power supply lines. Ensure that the PCB layout is designed to minimize radiation and susceptibility to electromagnetic interference.
  • The device requires a one-time calibration after power-up. The calibration sequence involves applying a known capacitance to the sensor inputs and reading the output codes. The calibration data is stored in the device's internal registers and is retained even when power is cycled.
  • Use a low-pass filter or a median filter to remove high-frequency noise. Implement a noise-reduction algorithm in the microcontroller or use a dedicated noise-reduction IC. Ensure that the device is properly grounded and shielded to minimize electromagnetic interference.
  • The AD7142ACPZ-500RL7 can measure capacitances up to 500 pF. However, the device can be configured to measure smaller capacitance ranges with higher resolution. Consult the datasheet for specific configuration options.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7142ACPZ-500RL7 Overview

Use the download button to access the AD7142ACPZ-500RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD714, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
