AD7147A-1ACBZ-RL footprint, schematic symbol and 3D model by Analog Devices

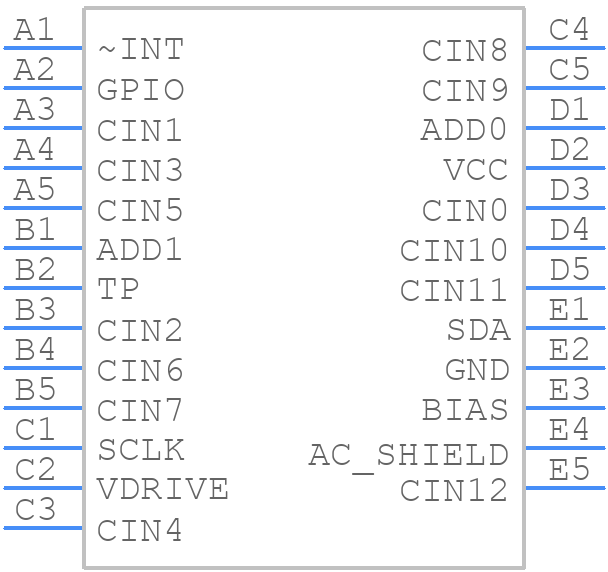

Symbol

click to zoom

PCB Footprints

AD7147A-1ACBZ-RL - Analog Devices PCB footprint - Other - Other - BGA25C40P5X5_205X225X60

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AD7147A-1ACBZ-RL
Part Number AD7147A-1ACBZ-RL
Manufacturer Analog Devices
Pin Count 25
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - BGA25C40P5X5_205X225X60
Released Date Jan 11, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

AD7147A-1ACBZ-RL Details

Manufacturer Part Number:
AD7147A-1ACBZ-RL
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
BGA
Package Description:
WLCSP-25
Pin Count:
25
Manufacturer Package Code:
CB-25-3
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
0
Consumer IC Type:
CONSUMER CIRCUIT
JESD-30 Code:
R-PBGA-B25
Length:
2.245 mm
Number of Functions:
1
Number of Terminals:
25
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
VFBGA
Package Shape:
RECTANGULAR
Package Style:
GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
0.6 mm
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
2.6 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Form:
BALL
Terminal Pitch:
0.4 mm
Terminal Position:
BOTTOM
Time@Peak Reflow Temperature-Max (s):
40
Width:
2.05 mm

AD7147A-1ACBZ-RL Frequently Asked Questions (FAQs)

The recommended PCB layout for the AD7147A-1ACBZ-RL can be found in the AD7147A-1ACBZ-RL evaluation board documentation, which provides a detailed layout guide and Gerber files for reference.
The AD7147A-1ACBZ-RL has an internal calibration mechanism, but it may require additional external calibration depending on the specific application. Refer to the AD7147A-1ACBZ-RL calibration guide and application notes for more information.
The AD7147A-1ACBZ-RL can measure capacitance ranges from 0 pF to 100 pF, but the maximum range may vary depending on the specific configuration and application. Refer to the datasheet and application notes for more information.
The AD7147A-1ACBZ-RL is rated for operation up to 125°C, but its performance may degrade at higher temperatures. Refer to the datasheet and application notes for more information on temperature-related performance and limitations.
The AD7147A-1ACBZ-RL has a digital interface that can be connected to a microcontroller using a serial peripheral interface (SPI) or inter-integrated circuit (I2C) protocol. Refer to the datasheet and application notes for more information on interface and communication protocols.

Trust Checks

System Verified

AD7147A-1ACBZ-RL Overview

Use the download button to access the AD7147A-1ACBZ-RL schematic symbol and PCB footprint.
