AD7147ACPZ-1REEL - Analog Devices

Description: Data Acquisition ADCs/DACs - Specialised CAPACITANCE TO DIGITAL CONVERTER

Download AD7147ACPZ-1REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

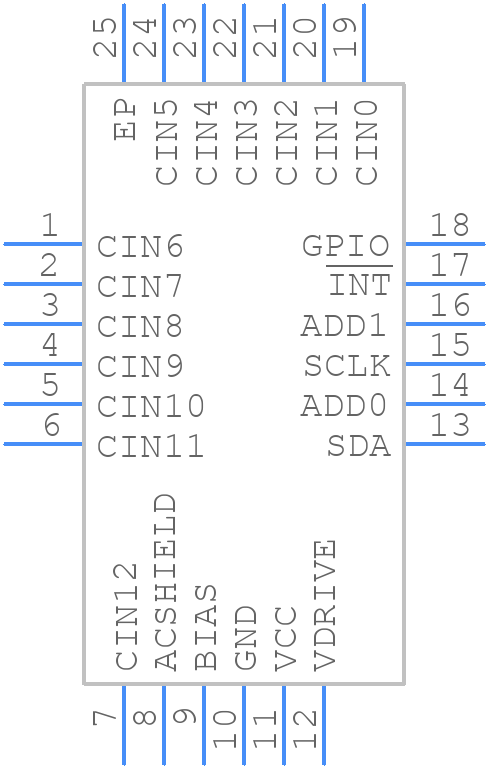

AD7147ACPZ-1REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7147ACPZ-1REEL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-24-7 (LFCSP)
click to zoom
3D Models
AD7147ACPZ-1REEL - Analog Devices - 3D model - Quad Flat No-Lead - CP-24-7 (LFCSP)
click to zoom

AD7147ACPZ-1REEL Details

  • Manufacturer Part Number:

    AD7147ACPZ-1REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, MO-220VGGD-8, LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-7

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

AD7147ACPZ-1REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD7147 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connecting the sensor inputs to the AD7147. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • Calibration of the AD7147 involves adjusting the internal offset and gain registers to compensate for variations in the sensor and PCB. A calibration procedure is typically performed at the factory, but can also be done in the field using a calibration routine and a reference sensor.
  • The maximum capacitance that can be connected to the AD7147 is dependent on the sensor type and the desired performance. As a general rule, the capacitance should be limited to 100 nF or less to ensure stable operation and optimal performance.
  • Yes, the AD7147 can be used with multiple sensors. The device has multiple channels that can be configured to connect to different sensors, allowing for simultaneous measurement of multiple capacitance values.
  • The power consumption of the AD7147 is typically in the range of 1-5 mA, depending on the operating frequency and mode of operation. The device has a low-power mode that can reduce power consumption to as low as 10 uA.
