AD7147ACPZ-500RL7 - Analog Devices

Description: AD7147ACPZ-500RL7, Capacitance to Digital Converter, 16 bit- 24-Pin LFCSP EP

Download AD7147ACPZ-500RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

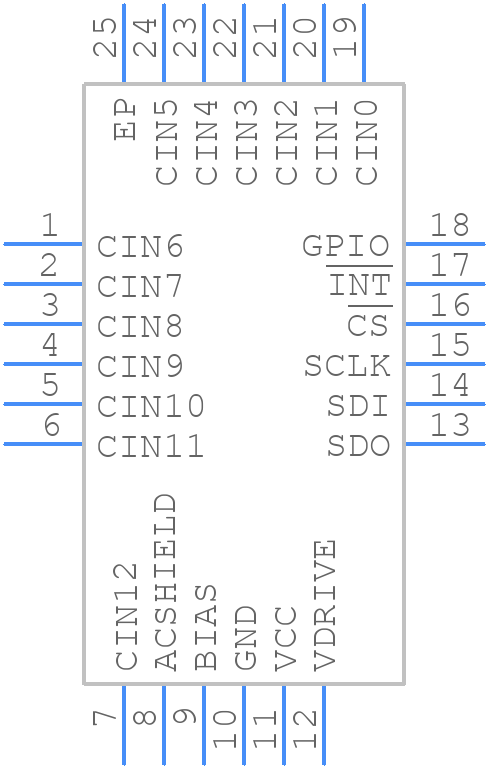

AD7147ACPZ-500RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7147ACPZ-500RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-Lead [LFCSP_WQ]
click to zoom
3D Models
AD7147ACPZ-500RL7 - Analog Devices - 3D model - Quad Flat No-Lead - 24-Lead [LFCSP_WQ]
click to zoom

AD7147ACPZ-500RL7 Details

  • Manufacturer Part Number:

    AD7147ACPZ-500RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, MO-220VGGD-8, LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-7

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

AD7147ACPZ-500RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD7147ACPZ-500RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the capacitive sensor. Additionally, it's recommended to use a shielded cable for the sensor connection and to minimize the length of the cable.
  • Calibration of the AD7147ACPZ-500RL7 involves adjusting the sensitivity and offset registers to optimize the device's performance for a specific capacitive sensor. This can be done using the device's built-in calibration mode or through software calibration using the device's registers.
  • The AD7147ACPZ-500RL7 can measure capacitance ranges from 1 pF to 100 pF, making it suitable for a wide range of capacitive sensing applications.
  • Yes, the AD7147ACPZ-500RL7 can be used in noisy environments. It has built-in noise filtering and averaging capabilities to minimize the effects of noise on the measurement. Additionally, the device's differential architecture helps to reject common-mode noise.
  • The AD7147ACPZ-500RL7 has a typical power consumption of 1.5 mA. To minimize power consumption, it's recommended to use the device's power-down mode when not in use, and to optimize the device's clock frequency and measurement rate for the specific application.
