AD7147WPACPZ-1500R - Analog Devices

Description: Capacitance to Digital Converter 0.111ksps 16bit Automotive 24-Pin LFCSP EP T/R

Download AD7147WPACPZ-1500R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

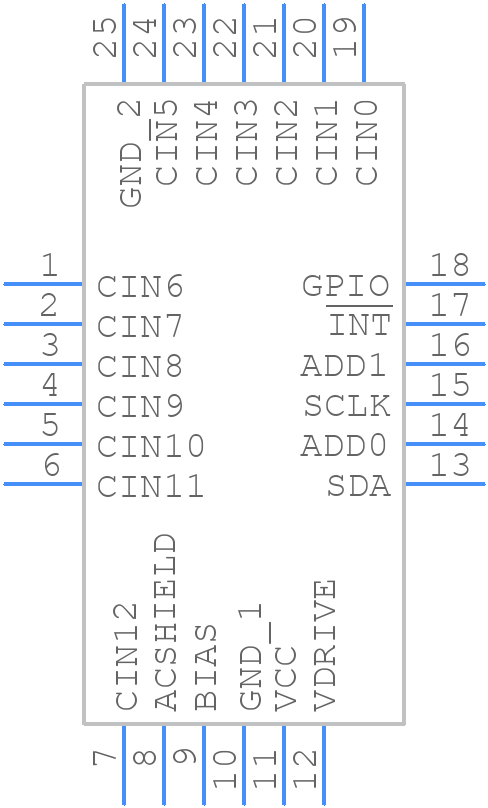

AD7147WPACPZ-1500R - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7147WPACPZ-1500R - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-24-7 (LFCSP)
click to zoom
3D Models
AD7147WPACPZ-1500R - Analog Devices - 3D model - Quad Flat No-Lead - CP-24-7 (LFCSP)
click to zoom

AD7147WPACPZ-1500R Details

  • Manufacturer Part Number:

    AD7147WPACPZ-1500R

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, MO-220VGGD-8, LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-7

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.3 V

  • Supply Voltage-Min (Vsup):

    2.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

AD7147WPACPZ-1500R Frequently Asked Questions (FAQs)

  • It is recommended to follow a symmetrical layout and place the device close to the sensor electrodes. Keep the analog and digital grounds separate, and use a solid ground plane to minimize noise. Refer to the AD7147 evaluation board layout as a reference.
  • Optimize the sensor electrode design by considering factors such as electrode size, shape, and spacing. Use a guard ring to reduce noise and increase sensitivity. The electrode material should be compatible with the target application and environment.
  • The AD7147WPACPZ-1500R can measure capacitance changes in the range of 0.5 pF to 150 pF. However, the maximum capacitance range may vary depending on the sensor electrode design and the specific application.
  • Calibration involves adjusting the device's internal registers to optimize performance for the specific application. Follow the calibration procedure outlined in the datasheet, and consider using the AD7147 evaluation board software to simplify the process.
  • The AD7147WPACPZ-1500R has a typical power consumption of 1.5 mA at 3.3 V supply voltage. However, power consumption may vary depending on the operating mode, clock frequency, and other factors.
