AD7148ACPZ-1500RL7 - Analog Devices

Description: AD7148ACPZ-1500RL7, Capacitance to Digital Converter, 16 bit- 2.6 → 3.3 V 16-Pin LFCSP VQ

Download AD7148ACPZ-1500RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

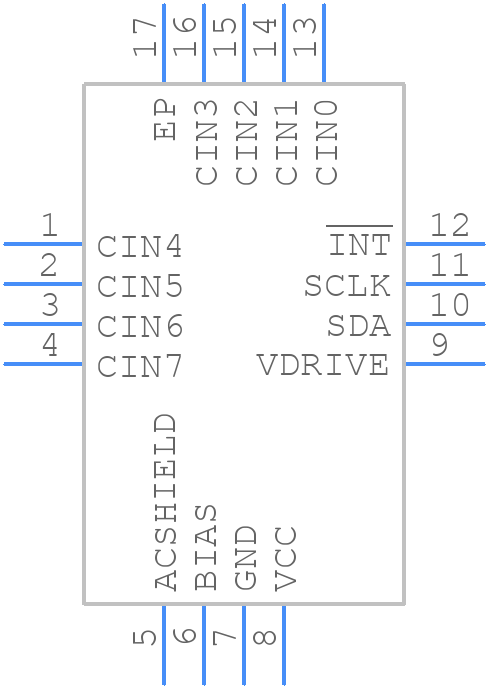

Symbol
AD7148ACPZ-1500RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7148ACPZ-1500RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-26_ 2022
click to zoom
3D Models
AD7148ACPZ-1500RL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-26_ 2022
click to zoom

AD7148ACPZ-1500RL7 Details

  • Manufacturer Part Number:

    AD7148ACPZ-1500RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-13

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.3 V

  • Supply Voltage-Min (Vsup):

    2.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

AD7148ACPZ-1500RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD7148ACPZ-1500RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connected to the capacitive sensors. A 4-layer PCB with a dedicated ground plane is recommended.
  • Calibration of the AD7148ACPZ-1500RL7 involves adjusting the sensor sensitivity and offset to match the specific application requirements. This can be done using the device's built-in calibration registers or through external calibration using a microcontroller.
  • The AD7148ACPZ-1500RL7 can measure capacitance ranges from 0 pF to 150 pF, with a resolution of 0.01 pF. However, the maximum capacitance range may vary depending on the specific application and sensor design.
  • The AD7148ACPZ-1500RL7 can be interfaced with a microcontroller using the I2C or SPI interface. The device's registers can be accessed using the microcontroller's I2C or SPI peripheral, and the data can be read and processed accordingly.
  • The AD7148ACPZ-1500RL7 has a typical power consumption of 1.5 mA at 1.8 V supply voltage. However, the power consumption may vary depending on the specific application and operating conditions.
