AD7150BRMZ - Analog Devices

Description: AD7150BRMZ, Capacitance to Digital Converter, 10-Pin MSOP

Download AD7150BRMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

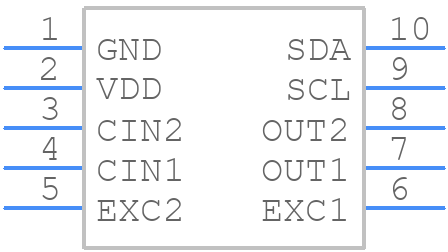

Symbol
AD7150BRMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7150BRMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD7150BRMZ
click to zoom
3D Models
AD7150BRMZ - Analog Devices - 3D model - Small Outline Packages - AD7150BRMZ
click to zoom

AD7150BRMZ Details

  • Manufacturer Part Number:

    AD7150BRMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD7150BRMZ Frequently Asked Questions (FAQs)

  • The AD7150BRMZ is a sensitive device and requires careful layout and placement to minimize noise and interference. It is recommended to place the device close to the sensor, use a ground plane, and keep the analog and digital traces separate.
  • The AD7150BRMZ requires a two-point calibration process to ensure accurate measurements. The device should be calibrated at two known points, typically 0% and 100% of the sensor's full-scale range, to determine the gain and offset values.
  • The AD7150BRMZ is sensitive to temperature changes, which can affect its performance. The device's offset and gain values can drift with temperature, so it is recommended to calibrate the device at the operating temperature range and to use temperature compensation techniques if necessary.
  • The AD7150BRMZ is susceptible to EMI, which can affect its performance. It is recommended to use shielding, filtering, and grounding techniques to minimize EMI effects. Additionally, the device's analog and digital traces should be kept separate and away from noise sources.
  • The AD7150BRMZ requires a stable power supply to ensure accurate measurements. It is recommended to use a decoupling capacitor (e.g., 10uF) close to the device's power pins to filter out noise and ripple.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7150BRMZ Overview

Use the download button to access the AD7150BRMZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD715, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
