AD7153BRMZ - Analog Devices

Description: AD7153BRMZ, Capacitance to Digital Converter, 12 bit- 2.7 → 3.6 V 10-Pin MSOP

Download AD7153BRMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

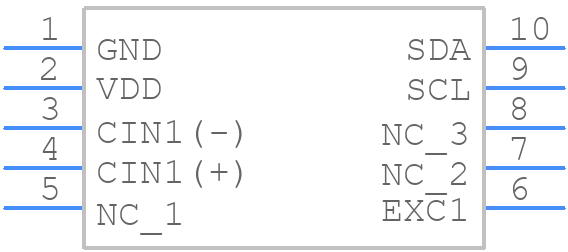

AD7153BRMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7153BRMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10 (MSOP)
click to zoom
3D Models
AD7153BRMZ - Analog Devices - 3D model - Small Outline Packages - RM-10 (MSOP)
click to zoom

AD7153BRMZ Details

  • Manufacturer Part Number:

    AD7153BRMZ

  • Source Url Status Check Date:

    2013-05-01 14:56:16.702

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-187BA, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.12 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

AD7153BRMZ Frequently Asked Questions (FAQs)

  • The AD7153BRMZ is a sensitive device and requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the device away from high-frequency signals, using a solid ground plane, and minimizing the length of the capacitive sensor lines.
  • Calibration of the AD7153BRMZ involves adjusting the offset and gain of the device to match the specific requirements of your application. This can be done using the device's built-in calibration registers or through external calibration using a microcontroller or other device. Refer to the datasheet and application notes for more information on calibration procedures.
  • The AD7153BRMZ can measure capacitance values up to 10pF with a resolution of 0.01pF. However, the maximum capacitance range may vary depending on the specific application and sensor design. It is recommended to consult the datasheet and application notes for more information on capacitance measurement ranges.
  • Noise and interference can be a significant issue when using the AD7153BRMZ. To minimize noise and interference, it is recommended to use proper shielding, grounding, and filtering techniques. Additionally, the device has built-in noise reduction features such as a programmable gain amplifier and a noise filter. Refer to the datasheet and application notes for more information on noise reduction techniques.
  • The power consumption of the AD7153BRMZ varies depending on the operating mode and frequency. In normal operation, the device consumes around 1.5mA of current. In sleep mode, the current consumption is reduced to around 10uA. Refer to the datasheet for more information on power consumption and power management.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD7153BRMZ Overview

Use the download button to access the AD7153BRMZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD715, or try a keyword search, such as Other Analog ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
