AD7170BCPZ-500RL7 - Analog Devices

Description: Analog Devices AD7170BCPZ-500RL7, 12 bit Serial ADC, Differential Input, 10-Pin LFCSP

Download AD7170BCPZ-500RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

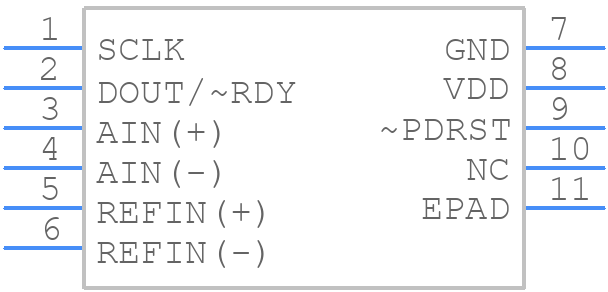

AD7170BCPZ-500RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD7170BCPZ-500RL7 - Analog Devices PCB footprint - Other - Other - DFN300X300X80-11N
click to zoom
3D Models
AD7170BCPZ-500RL7 - Analog Devices - 3D model - Other - DFN300X300X80-11N
click to zoom

AD7170BCPZ-500RL7 Details

  • Manufacturer Part Number:

    AD7170BCPZ-500RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-9

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    3 V

  • Analog Input Voltage-Min:

    -3 V

  • Conversion Time-Max:

    8000 µs

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.00244%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.000125 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD7170BCPZ-500RL7 Frequently Asked Questions (FAQs)

  • The AD7170BCPZ-500RL7 requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet and application notes, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources.
  • To optimize the performance of the AD7170BCPZ-500RL7 in noisy environments, it is recommended to use proper shielding, filtering, and grounding techniques. Additionally, using a low-pass filter on the analog input and a ferrite bead on the power supply can help to reduce noise. It is also important to ensure that the device is operated within its specified temperature range.
  • The maximum sampling rate of the AD7170BCPZ-500RL7 is 500 kSPS. However, the actual sampling rate may be limited by the system's clock frequency, the analog input bandwidth, and the digital interface used.
  • Yes, the AD7170BCPZ-500RL7 can be used in multiplexed mode, allowing multiple analog input channels to be scanned and converted sequentially. This can be useful in applications where multiple channels need to be monitored or controlled.
  • The AD7170BCPZ-500RL7 has an internal calibration mechanism that can be initiated through the digital interface. The device can be calibrated using an external calibration voltage source or an internal voltage reference. It is recommended to follow the calibration procedure outlined in the datasheet and application notes.
