- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD7170BCPZ-REEL7
- Part Number AD7170BCPZ-REEL7
- Manufacturer Analog Devices
- Pin Count 11
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - DFN300X300X80-11N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD7170BCPZ-REEL7 Details
-
Manufacturer Part Number:
AD7170BCPZ-REEL7
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
3 X 3 MM, ROHS COMPLIANT, LFCSP-10
-
Pin Count:
10
-
Manufacturer Package Code:
CP-10-9
-
Country Of Origin:
South Korea
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
AD7170BCPZ-REEL7 Frequently Asked Questions (FAQs)
-
The AD7170 requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources.
-
To optimize the AD7170's performance, it is recommended to carefully select the gain and offset settings, filter corner frequencies, and data rate based on the specific requirements of your application. Additionally, consider using the device's built-in calibration and diagnostic features to ensure optimal performance.
-
The AD7170 can handle input voltages up to ±VREF (typically 2.5V or 5V), but it is recommended to limit the input voltage to ±VREF/2 to ensure optimal performance and prevent damage to the device.
-
The AD7170 can be interfaced with a microcontroller or FPGA using a serial peripheral interface (SPI) or inter-integrated circuit (I2C) interface. The device's digital output can be connected directly to the microcontroller or FPGA's digital input pins, and the interface can be configured using the device's control registers.
-
The AD7170's power consumption is typically around 15mA at 5V supply voltage. To minimize power consumption, consider using the device's power-down mode, reducing the sampling rate, and optimizing the device's configuration for the specific application requirements.
Trust Checks
System Verified
AD7170BCPZ-REEL7 Overview

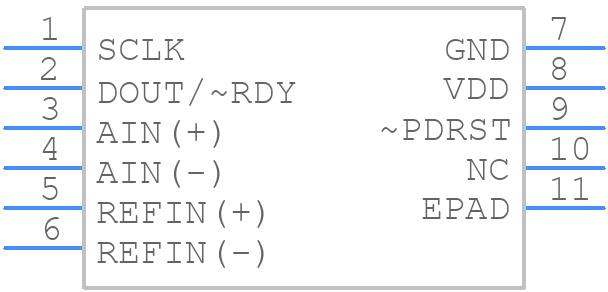

Use the download button to access the AD7170BCPZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD717,
or try a keyword search, such as Analog to Digital Converters
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
